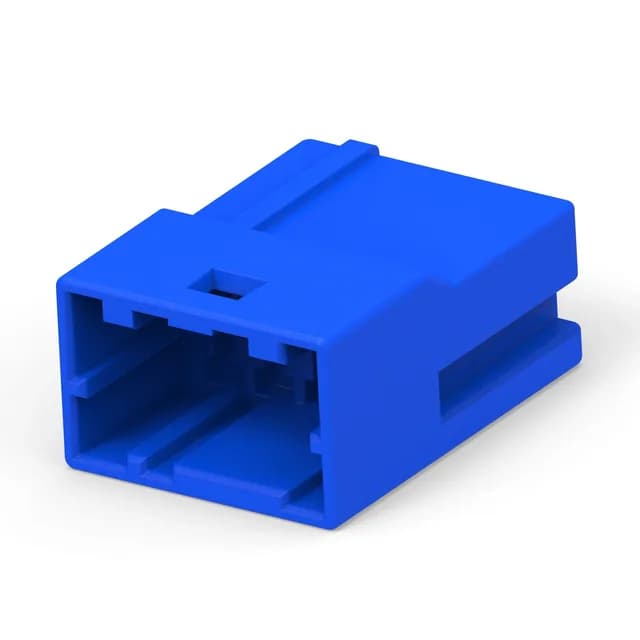

TE Connectivity Grace Inertia 2.5 receptacle housing, order code 2-2232574-3, 4 positions, single row, 0.098" (2.50mm) pitch, blue PBT glass-filled housing, free hanging (in-line) mounting, crimp termination, female socket contacts.
| Parameter | Value |
|---|---|
| Series | Grace Inertia 2.5 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Pitch | 0.098\" (2.50mm) |
| Package | Bag |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
Within the Grace Inertia 2.5 family, the 4-position 2-2232574-3 is the smallest circuit-count receptacle housing; a 5-position sibling (1379217-6) combines 3 signal and 2 power contacts in a single row, sharing the same locking ramp fastening.
The blue colour distinguishes this housing from natural or white variants in the same series, aiding visual identification during harness assembly.
The 2-2232574-3 is a receptacle housing; it mates with a corresponding Grace Inertia 2.5 plug header (not included).
