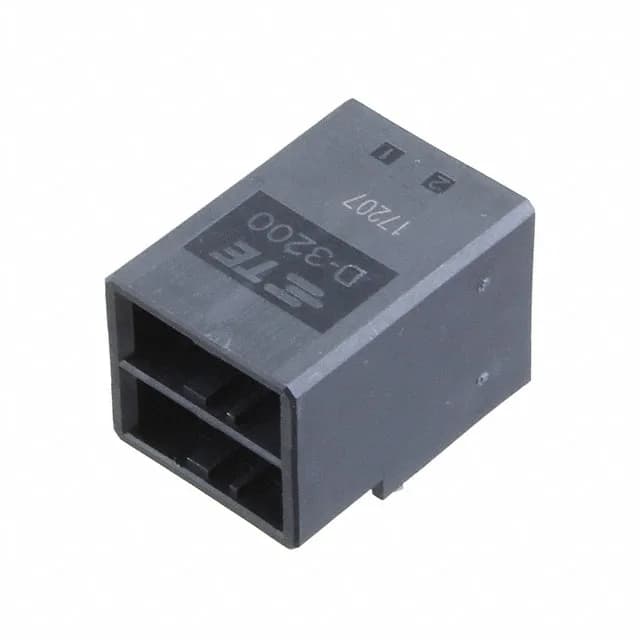

TE Connectivity AMP Connectors Dynamic D3200M series, 2-2299004-1, Board to Cable/Wire header, 4 circuits, 2 rows, 5.08mm pitch, right-angle through-hole, gold-plated male pins, board lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Dynamic D3200M |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 600V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.727\" (18.47mm) |
| Insulation material | Thermoplastic, Polyester |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Its 5.08mm pitch and 0.300" row spacing give it the footprint for higher-current circuits compared to denser 2.54mm headers.
The post tails are tin-plated for reliable solder joints.
This header mates with a Dynamic D3200M series receptacle (socket housing) using the corresponding crimp terminals. The 5.08mm pitch and 2-row layout are specific to the D3200M family.
Yes, it is ROHS3 compliant.
