TE Connectivity AMP Connectors 2-2314844-0 — Female Socket Headers

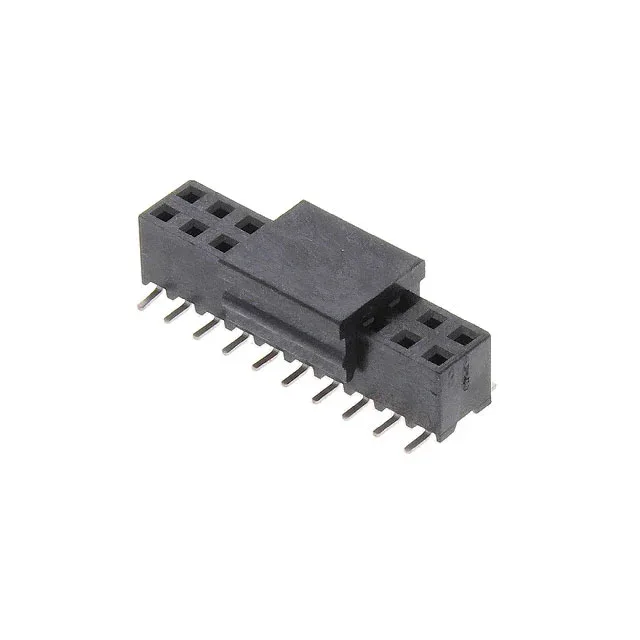

2-2314844-0 TE AMPMODU 20 Pos Receptacle, 2.00mm Pitch, SMD

MPN2-2314844-0
Active

TE Connectivity AMPMODU, 20-position dual-row receptacle, 2.00 mm pitch, gold mating finish, SMD, board-to-board style, UL94 V-0 LCP housing, active production.

$1.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-2314844-0 datasheet (PDF)
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-2314844-0 key specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Voltage rating125VAC
Current rating2A
Operating temperature-40°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

2-2314844-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesPick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post12.0µin (0.30µm)
Contact finish thickness - mating3.94µin (0.100µm)

Product details

SMD Termination and Pick-and-Place Ready

Surface-mount termination with a pick-and-place feature allows automated assembly — the flat top and vacuum-pick area suit high-speed placement without manual handling.

Supplied in tube packaging. The base product number is 2314844 for cross-referencing with mating headers.

Peer Alternatives for Sourcing Flexibility

If 2-2314844-0 is unavailable, the closest functional alternative is 1-2823056-2 — a 12-position, 2.54 mm pitch receptacle with tin mating finish. The pitch and circuit count differ, so a board respin is needed.

Frequently asked questions

What is the pitch of 2-2314844-0?

The mating pitch is 0.079" (2.00 mm), with the same row spacing.

Does 2-2314844-0 have a pick-and-place feature?

Yes, it includes a pick-and-place feature for automated SMT assembly.

Where can I buy 2-2314844-0 with stock?

Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time.
