TE Connectivity AMP Connectors 2-2316110-4 — Connector Housings

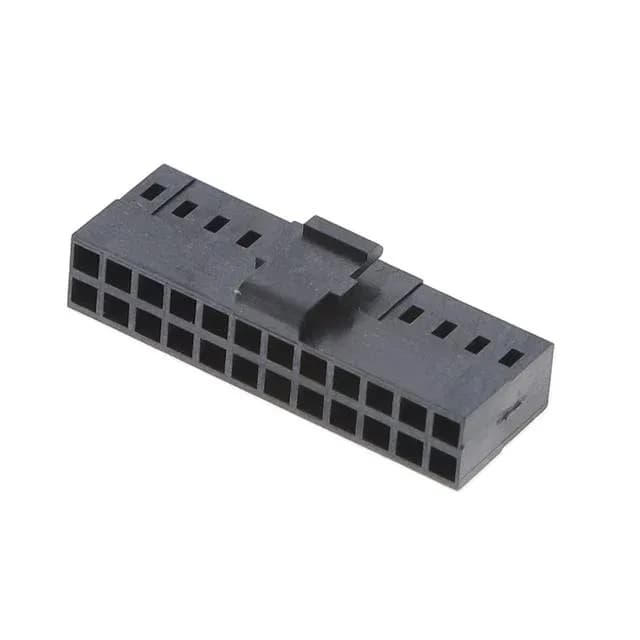

TE AMPMODU 2-2316110-4 Receptacle Housing, 24 Pos, 2.00mm

MPN2-2316110-4
Active

TE Connectivity AMPMODU receptacle housing, 2-2316110-4, 24 positions, 2 rows, 0.079" (2.00mm) pitch, free-hanging, crimp termination, latch lock, black LCP housing.

$1.1800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-2316110-4 datasheet (PDF)
SeriesAMPMODU
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-2316110-4 specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
ColorBlack
Insulation materialLiquid Crystal Polymer (LCP)
Pitch0.079\" (2.00mm)
PackageBox
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions24

Product details

2.00 mm Pitch, 24-Position Receptacle Housing

The TE Connectivity AMPMODU 2-2316110-4 is a 24-position, 2-row receptacle housing on a 0.079" (2.00 mm) pitch.

This housing accepts AMPMODU female socket crimp terminals (contacts not included — order separately). The 2-row, 24-position layout mates with the corresponding AMPMODU 2.00 mm pitch header, either vertical or right-angle, with a matching 2-row pin arrangement. For field service, the crimp terminals can be extracted with the proper tool — no need to desolder a board-side header. The free-hanging design suits harness assemblies where the receptacle floats rather than being panel-mounted.

Frequently asked questions

Where can I buy the 2-2316110-4 connector housing?

The 2-2316110-4 is available to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

What contacts fit the 2-2316110-4 housing?

This AMPMODU receptacle housing accepts TE female socket crimp terminals designed for 2.00 mm pitch, 2-row applications. The contacts are ordered separately — the housing does not include them. Match the terminal to your wire gauge (typically 24-28 AWG for this series) and crimp tooling.

What is the pitch of the 2-2316110-4?

The 2-2316110-4 uses a 0.079" (2.00 mm) pitch, with the same 2.00 mm row spacing. This is the standard AMPMODU 2.00 mm pitch — the board footprint and mating header must match this spacing.
