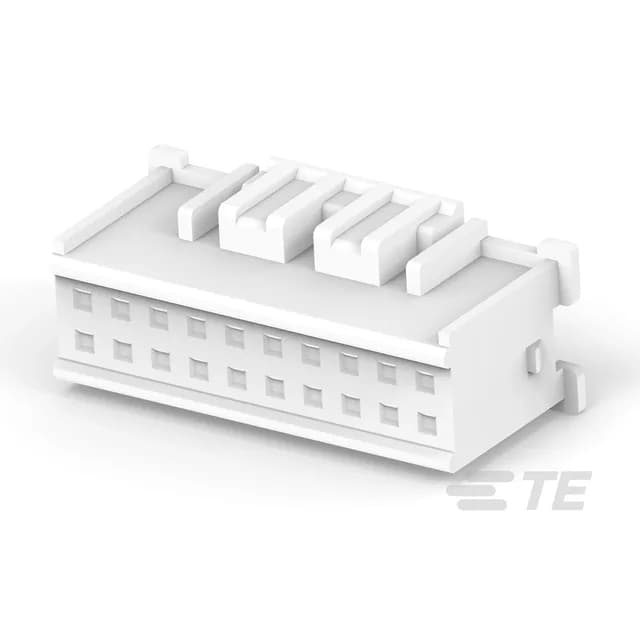

TE Connectivity AMP Connectors 2-2324579-0 — Connector Housings

TE Economy Power 2.5 2-2324579-0, 20-Position Plug Housing

MPN2-2324579-0
Active

TE Connectivity Economy Power 2.5 plug housing, 2-2324579-0, 20 positions, dual row, 0.098" (2.50mm) pitch, natural, latch holder, free hanging, crimp termination, -55°C to 105°C.

$0.5600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-2324579-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesEconomy Power 2.5
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-2324579-0 specifications
ParameterValue
SeriesEconomy Power 2.5
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
Pitch0.098\" (2.50mm)
PackageBag
Row spacing0.098\" (2.50mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-Position Dual-Row Housing for Economy Power 2.5 Harnesses

The TE Connectivity 2-2324579-0 is a 20-position, dual-row plug housing from the Economy Power 2.5 series. It uses a 0.098" (2.50mm) pitch and a latch holder fastening system, designed for free-hanging (in-line) wire-to-board or wire-to-wire applications.

The 0.098" row spacing mirrors the pitch, keeping the board footprint compact for the 20-circuit count.

Listed as Active in production, the 2-2324579-0 is RoHS compliant and available through independent distribution.

Frequently asked questions

Where can I buy 2-2324579-0 available via RFQ confirmation?

The 2-2324579-0 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — stock levels and lead time are confirmed at quote time.

What is the mating header for 2-2324579-0?

The 2-2324579-0 mates with a dual-row Economy Power 2.5 pin header at the same 0.098" pitch. The specific header part number depends on the required mounting orientation and circuit count — confirm the header's position count matches the 20-circuit housing.

Does 2-2324579-0 come with crimp contacts?

No, the housing is supplied without contacts. It accepts female socket crimp terminals (sold separately) with a crimp termination style.

Is 2-2324579-0 RoHS compliant?

Yes, the 2-2324579-0 is RoHS Compliant.
