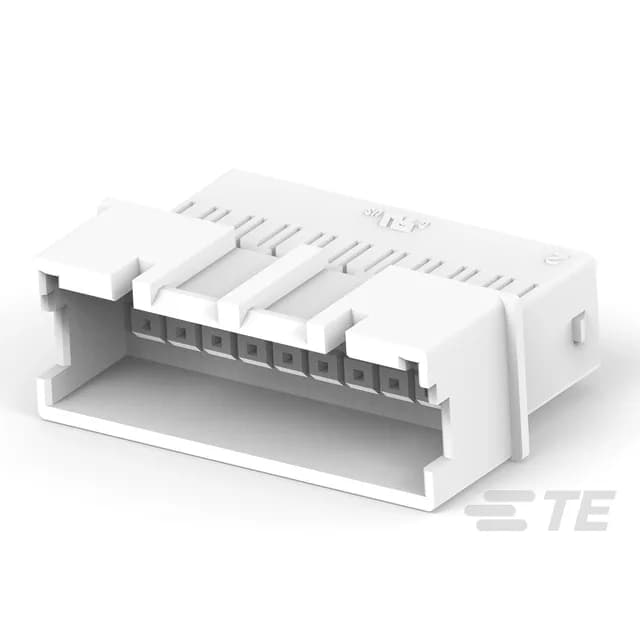

20-Position Dual-Row Receptacle for Economy Power 2.5 Harnesses
The dual-row layout at 0.098" (2.50mm) pitch matches the mating header pin field, giving you 20 circuits in a compact, two-row footprint.
What the 0.098" Pitch and Latch Lock Mean for Your Assembly
The 0.098" (2.50mm) pitch is the defining dimension for this series — it sets the mating interface to the standard Economy Power 2.5 header family. At this pitch, the dual-row arrangement keeps the overall connector width under 0.6", which fits in tighter panel cutouts than a single-row 20-position at the same pitch. For harnesses that see occasional flex or machine vibration, this latch is sufficient — no secondary hardware needed.
Mating Header and Compatible Contacts
This receptacle mates with any standard Economy Power 2.5 header that has 20 positions in a dual-row, 0.098" pitch layout — typically a TE part with the same series designation and a male pin configuration. For the contact part numbers, refer to the TE Economy Power 2.5 crimp terminal family — the exact wire gauge range and plating grade (tin vs. gold) depend on the current and environmental requirements of your build.
