TE Connectivity AMP Connectors 2-2822979-3
MPN2-2822979-3
Active

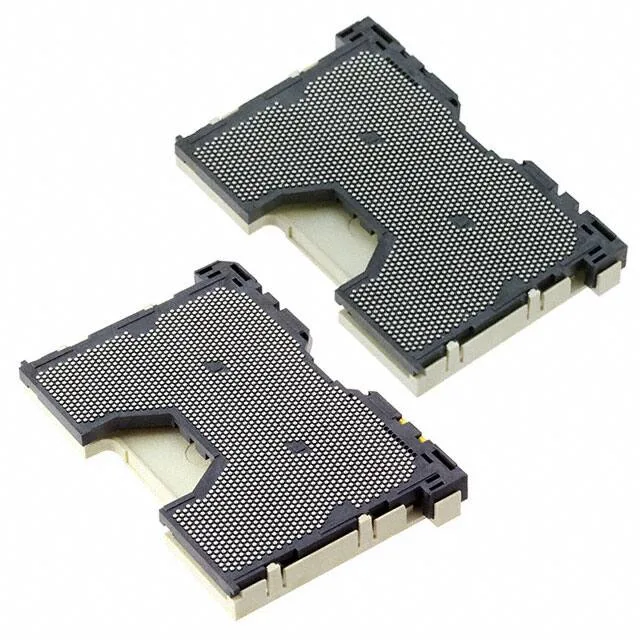

CONN SOCKET LGA 3647POS GOLD
$65.72Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | LGA |
| Mounting | Surface Mount |
| Current rating | 0.5 A |
| Housing material | Thermoplastic |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.034\" (0.86mm) |
| Pitch | 0.039\" (1.00mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 3647 |
