TE Connectivity AMP Connectors 2-292138-4 — Pin Headers

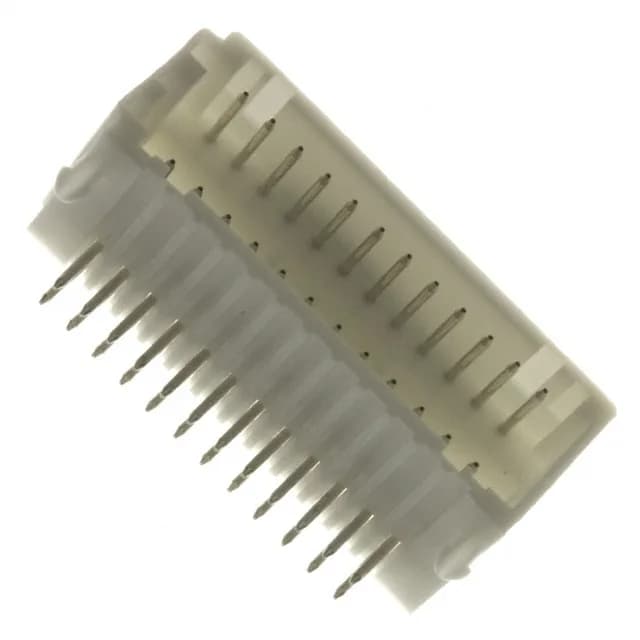

2-292138-4 TE Connectivity CT Header 24 Pos 2mm R/A Board

MPN2-292138-4
Active

TE Connectivity CT series, 2-292138-4, Board to Cable/Wire header, 24 positions, 2 rows, 0.079" (2.00mm) pitch, through-hole right-angle, shrouded 4-wall, detent lock, board lock, tin contacts, UL94 V-0.

$1.5900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-292138-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-292138-4 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.437\" (11.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

2-292138-4 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows2
Pitch0.079\" (2.00mm)
Positions24
Row spacing - mating0.256\" (6.50mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact length - mating0.185\" (4.70mm)

Product details

Board-fit footprint and circuit count

The 2-292138-4: This 24-position, dual-row header uses a 0.079" (2.00mm) pitch on the mating interface and a 0.256" (6.50mm) row spacing, so the PCB footprint occupies a 2x12 grid that fits standard CT series receptacles.

The part is ROHS3 compliant and packed in trays for automated pick-and-place.

This shrouded 4-wall header mates with standard CT series crimp receptacles; the detent lock provides audible feedback on full engagement. Contacts are tin-plated brass — suitable for moderate mating-cycle applications where gold is not required.

Frequently asked questions

Where can I buy 2-292138-4?

Submit a request for current pricing and lead time — no stock-holding commitment is made on this listing.

Is 2-292138-4 compatible with standard CT series receptacles?

Yes, the 0.079" (2.00mm) pitch and 4-wall shrouding are designed for CT series crimp receptacles. The detent lock ensures positive retention with the mating half.

What is the closest functional alternative to 2-292138-4?

The single-row variant 1-292164-1 shares the same 2.00mm pitch and tin plating but has 11 positions in one row — a different board footprint and circuit count.
