26-circuit shrouded header in the CT series
The 2-292138-6 is the 26-circuit member of TE Connectivity's CT board-to-wire header line, a shrouded 4-wall design with detent lock and board lock features.

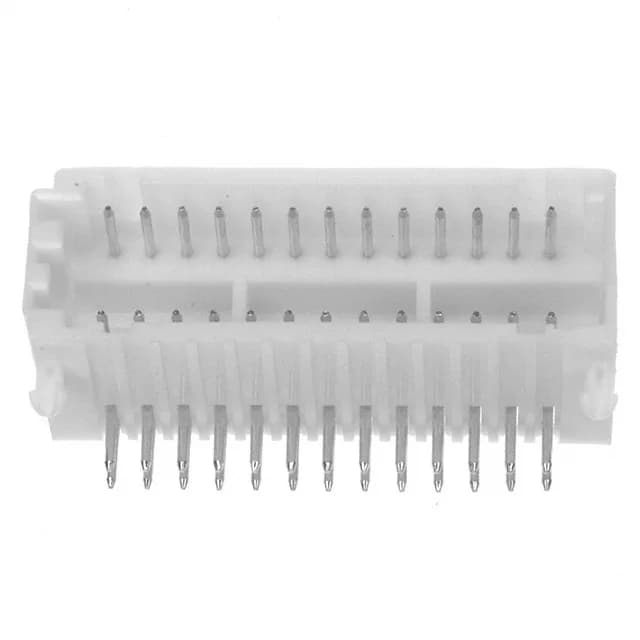

TE Connectivity CT 2-292138-6 Header, 26-Pos 2.00mm
MPN2-292138-6
Active
TE Connectivity CT header, order code 2-292138-6, 26 positions, dual row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, through-hole right-angle, solder termination.
$1.0566Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.437\" (11.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.185\" (4.70mm) |
Product details
Frequently asked questions
What is the connector style and series for the 2-292138-6?
The 2-292138-6 is a Board to Cable/Wire header from the TE Connectivity CT series.
