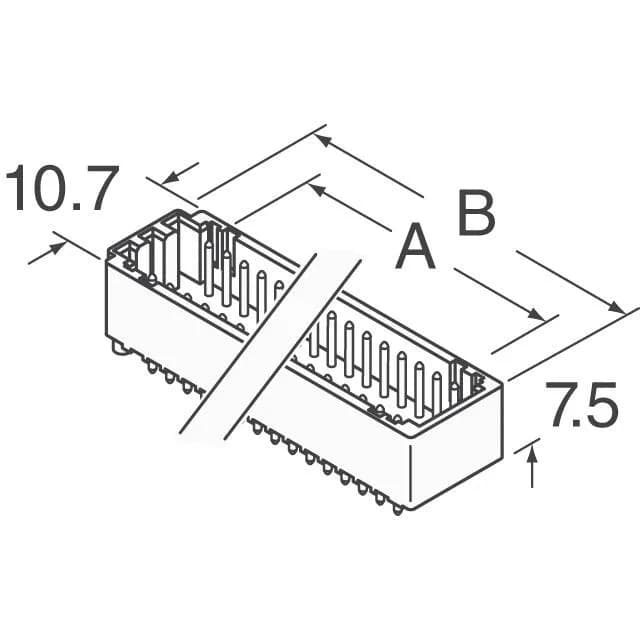

TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 26 Positions, 2.00mm Pitch, Through Hole, Solder Termination, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0
2-292141-6 TE Connectivity CT Header, 26 Pos, 2mm Pitch
MPN2-292141-6
Active
TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 26 Positions, 2.00mm Pitch, Through Hole, Solder Termination, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0
$2.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.295\" (7.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.386\" (9.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.185\" (4.70mm) |
Product details
Frequently asked questions
What is the mating connector for 2-292141-6?
Use the matching receptacle housing and crimp terminals for a complete wire-to-board connection.
Is 2-292141-6 RoHS compliant?
Yes, it is ROHS3 compliant.
