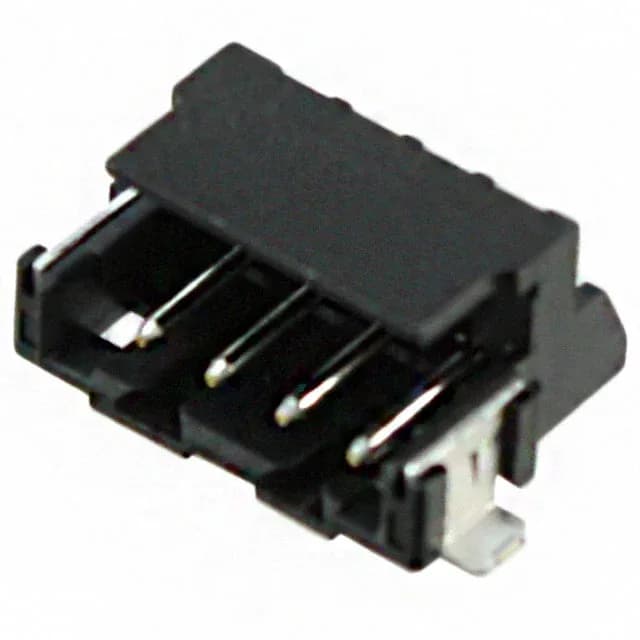

TE Connectivity AMP Connectors CT series, Board to Cable/Wire, Header, Male Pin, 4 Positions, 2.00mm Pitch, Surface Mount Right Angle, Shrouded - 4 Wall, Detent Lock, Tin Plating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
The 2-292173-4: This 4-position header from the TE CT series mates with a 2.00mm pitch cable receptacle — the shrouded 4-wall housing with detent lock keeps the pair together under vibration. Rated 125VAC, current depends on the wire gauge in the mating half.
Insulation height is 0.228" (5.80mm) above the board surface; mating pin length is 0.165" (4.20mm).
2-292173-4 mates with a TE CT series 2.00mm pitch cable receptacle (female housing with crimp terminals). The detent lock on the header engages the latch on the receptacle.
Yes, 2-292173-4 is ROHS3 compliant.
