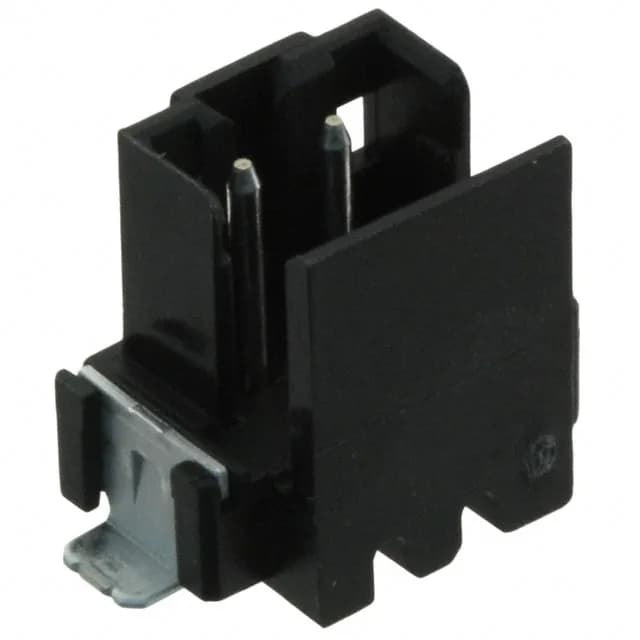

TE Connectivity AMP Connectors CT series header, order code 2-292175-2, 2 positions, single row, 2.00 mm pitch, 125VAC, tin-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall, detent lock.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 2-292175-2 is the 2-position member of TE Connectivity's CT series of board-to-cable/wire shrouded headers. It carries tin-plated square pins at 2.00 mm pitch, rated 125VAC, and mounts surface-mount with solder termination and a detent lock for retention.
The mating pitch is 0.079" (2.00 mm).
ROHS3 compliant per the manufacturer's listing.
The 1-292164-1 is a same-series CT header with 11 positions, through-hole right-angle mounting, and box packaging — the 2.00 mm pitch, shrouding, and detent lock are shared, but the position count and mounting orientation differ.
