Right-angle 20-position header for 1.5mm pitch wire-to-board

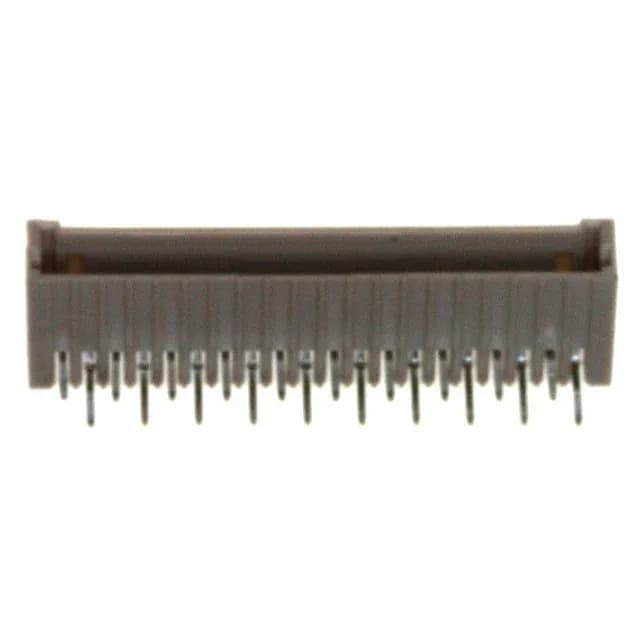

The 2-292206-0: This is a 20-position, single-row header from TE's Mini CT series, pitched at 1.50mm, terminated through-hole with a right-angle orientation. It mates with Mini CT crimp receptacles for a board-to-cable connection. The shrouded 4-wall design and detent lock provide a secure, vibration-resistant mate — the lock keeps the pair together without relying on the friction of the contacts alone.
Temperature range and flammability rating
Rated for -30°C to 105°C, this header fits industrial cabinet and outdoor telecom enclosures where the ambient stays within that band. The glass-filled nylon housing carries a UL94 V-0 rating, required for equipment inside an enclosure.
Contact plating and termination
Both the mating and post sides are tin-plated — adequate for moderate mating cycles in a controlled environment. The kinked solder post (0.118" long) locks the pin in the plated through-hole during wave solder.
