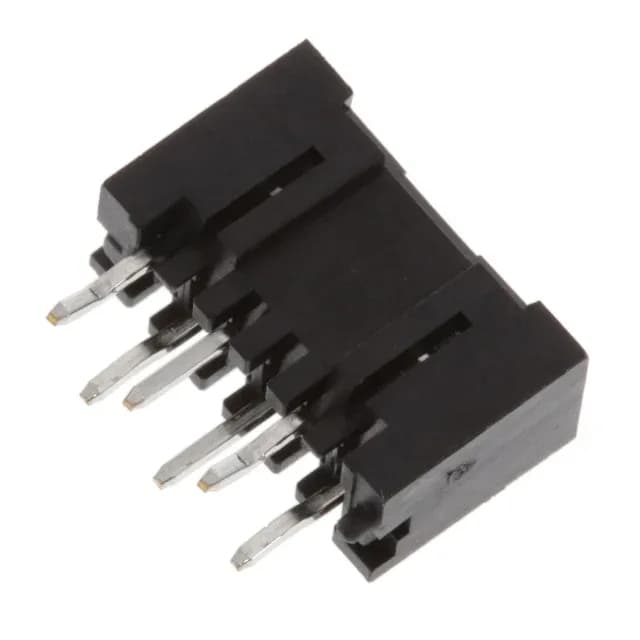

6-Position 1.50mm Pitch Header — Mini CT Series
It uses a 1.50mm pitch, which is compact enough for dense PCB layouts but still allows for manual soldering and inspection.
Termination is through-hole with kinked pins (Kinked Pin, Solder), which helps retain the header in the board during wave soldering and reduces the risk of pin float. The contact length - post is 0.118" (3.00mm), suitable for standard 1.6mm PCBs with enough protrusion for a reliable solder fillet.
Tin Plating and Temperature Range
The housing is glass-filled nylon (Polyamide (PA), Nylon, Glass Filled) rated UL94 V-0 for flammability.
