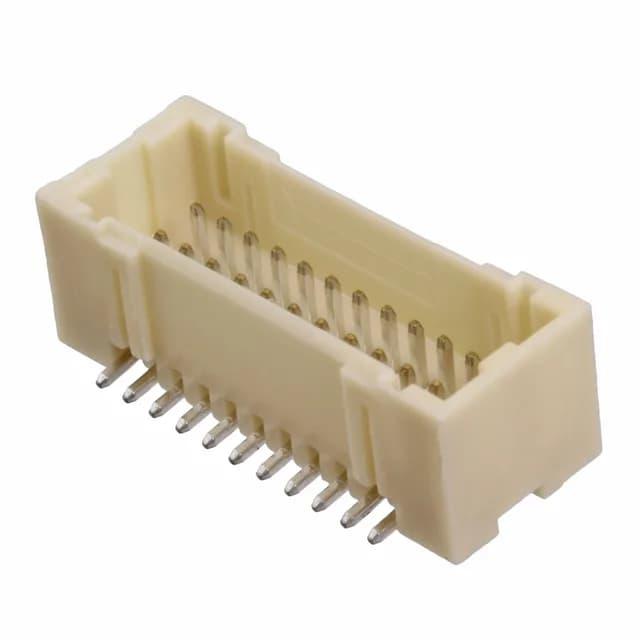

TE Connectivity AMP Mini CT, 22-position SMD header, 1.50 mm pitch, shrouded 4-wall, detent lock, tin-plated square pins, beige PA housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.291\" (7.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
The 2-292229-2: This TE Mini CT header brings 22 circuits in a 1.50 mm pitch SMD package — a tight footprint for board-to-cable/wire connections where every millimetre of board space counts. A detent lock gives a positive click when fully mated, so you know the connection is seated without a secondary latch check.
Mating pitch is 0.059" (1.50 mm) with a row spacing of 0.079" (2.00 mm) — the 22 positions load all circuits across two rows.
ROHS3 compliant.
It mates with a Mini CT receptacle housing and crimp terminals (same series). The detent lock on the header engages with the receptacle latch for positive retention.
Mating pitch is 0.059" (1.50 mm) with a row spacing of 0.079" (2.00 mm).
Yes, the listed application category is General Purpose, and the operating temperature range is -30°C to 105°C with a UL94 V-0 housing.
