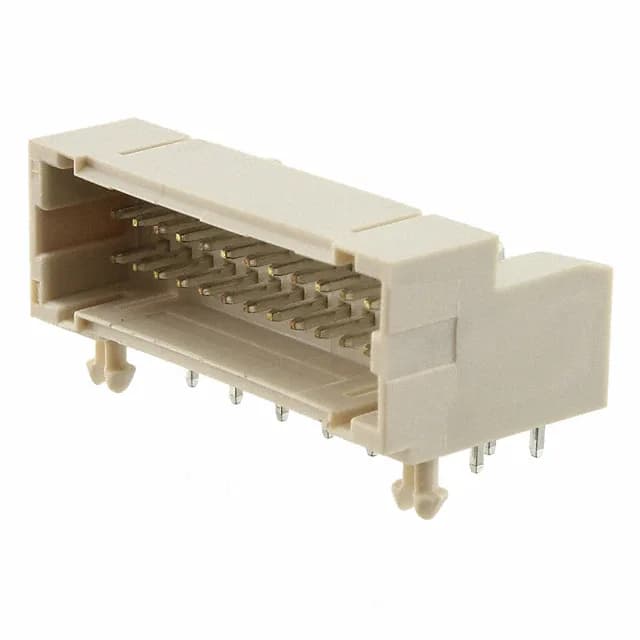

TE Connectivity AMP Mini CT series header, 2-292262-4, 24 positions, 1.50 mm pitch, dual-row, through-hole right-angle, shrouded, board lock, detent lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.358\" (9.10mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 24 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
The 2-292262-4 is a TE Connectivity AMP Mini CT series header with 24 positions in a dual-row layout at 1.50 mm mating pitch and 2.00 mm row spacing. The shrouded 4-wall header with detent lock provides positive mating alignment and audible feedback, reducing the risk of partial mate under vibration — relevant for field-service equipment and mobile applications.
