Board-to-wire header with board lock

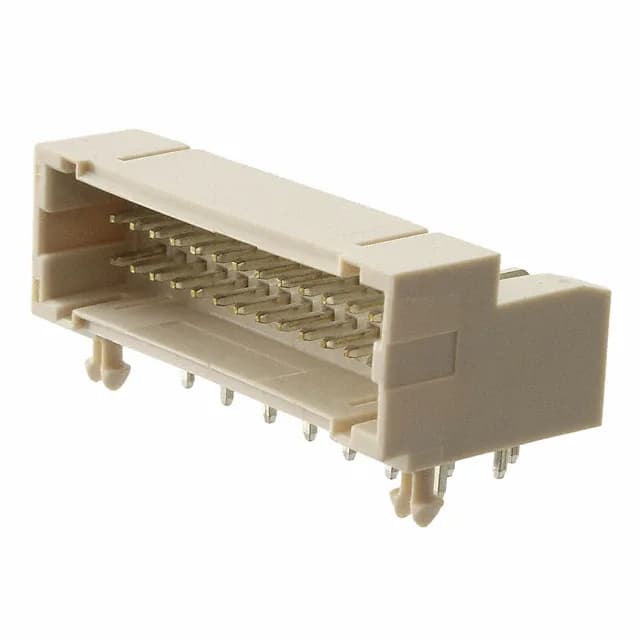

The 2-292262-6 is the 26-circuit member of TE's Mini CT shrouded header line, configured for board-to-cable/wire duty with a 4-wall shroud and detent lock. It carries tin-plated mating contacts on a 1.50 mm pitch, rated 50 VAC, and mounts through-hole right-angle with a board lock for solder-joint retention during reflow.
Pitch and row spacing for dense routing
The 1.50 mm mating pitch and 2.00 mm row spacing keep the board footprint compact — the 26 positions in two rows fit a 13×2 grid that routes between adjacent vias on a standard PCB.
