Board-to-board or cable header, 5 positions

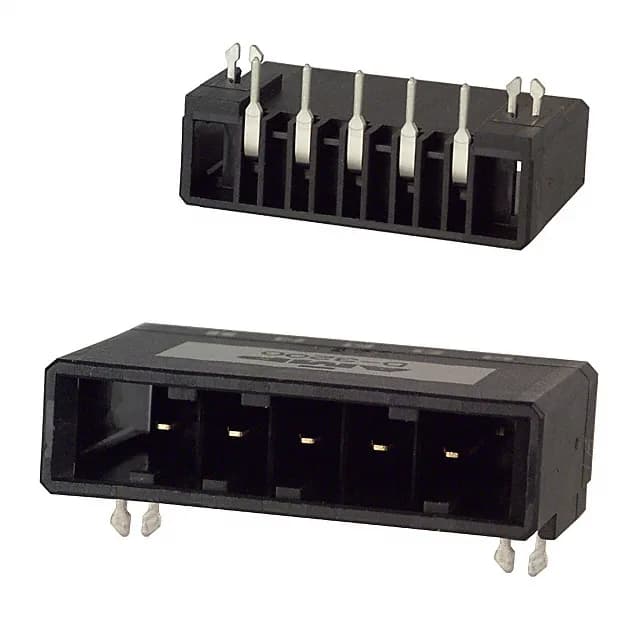

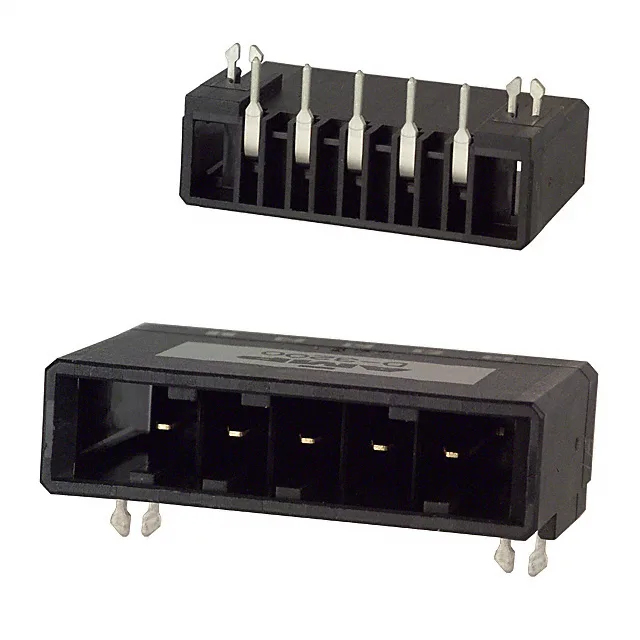

The 2-316130-3 is the 5-position member of TE's Dynamic D-3200 header line, a shrouded single-row board-to-board or cable interconnect. Gold-plated mating contacts rated 600 V, through-hole right-angle mounting with a board lock for reflow retention, and a detent lock for vibration-resistant mating.
Selection notes
The 5.08 mm pitch and single-row layout keep the board footprint wide enough for high-voltage routing between traces — the 600 V rating is the limiting factor, not the contact spacing. UL94 V-0 glass-filled polyester housing and a -55°C to 105°C operating range suit the header for industrial enclosures where flame rating and thermal cycling are specified.
