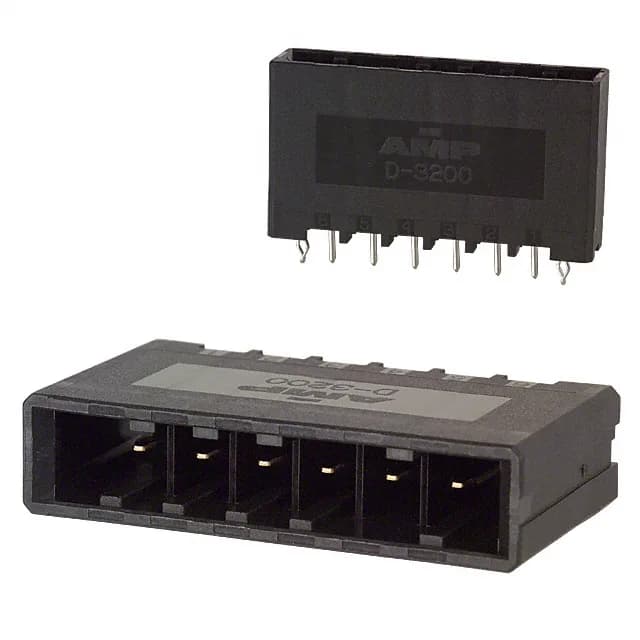

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 2-316133-3, 6 positions, single row, 0.200" (5.08mm) pitch, 600 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-316133-3 is the 6-circuit member of TE's Dynamic D-3200 single-row header line, shrouded on all four walls with a detent lock and board locks for through-hole retention.
Mated stacking heights span 31.00 mm to 32.50 mm, accommodating board-to-board or cable-to-board layouts at a 5.08 mm pitch.
The 2-316133-3 is available for order. Request a quote through the distributor listing; pricing is confirmed per quantity at RFQ.
No pin-compatible alternative is listed in the Dynamic D-3200 series for the 2-316133-3. The 6-position count and 5.08 mm pitch are specific to this order code.
The style is Board to Board or Cable.
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors upon request.
