TE Connectivity AMP Connectors 2-320565-1
MPN2-320565-1
Active

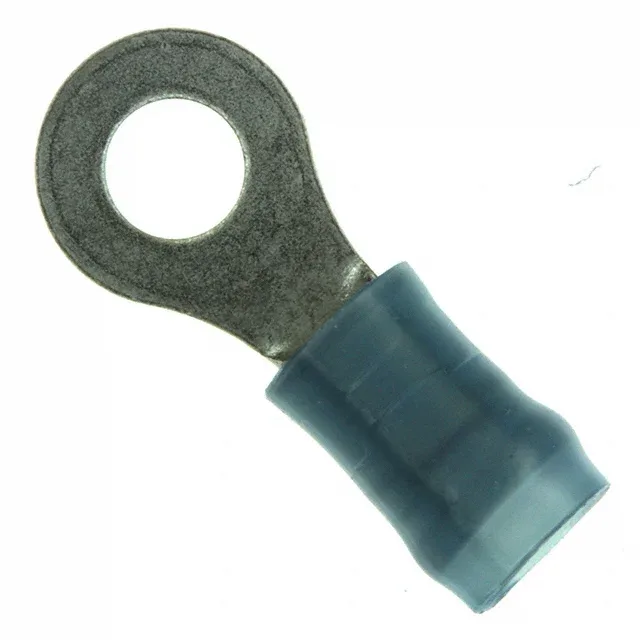

CONN RING CIRC 14-16AWG #8 CRIMP
$0.4Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.859\" (21.82mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
