TE Connectivity AMP Connectors 2-32953-1
MPN2-32953-1
Active

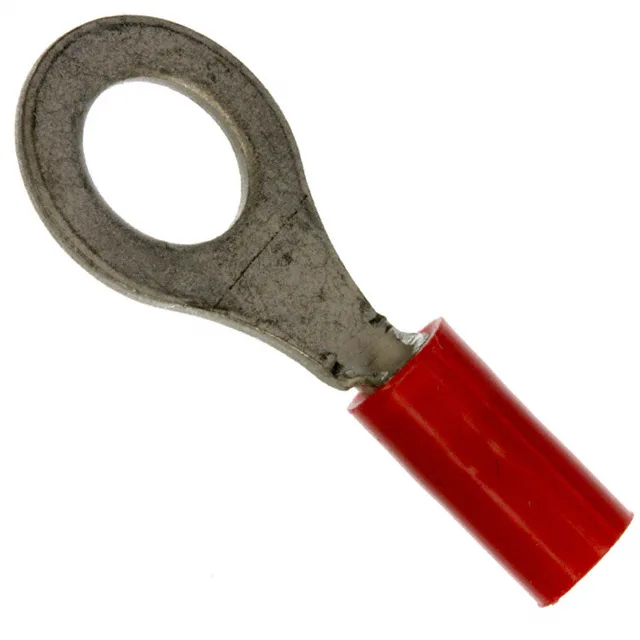

CONN RING CIRC 16-22AWG #1/4
$0.78Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.090\" (27.69mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
