TE Connectivity AMP Connectors 2-338069-0 — Female Socket Headers

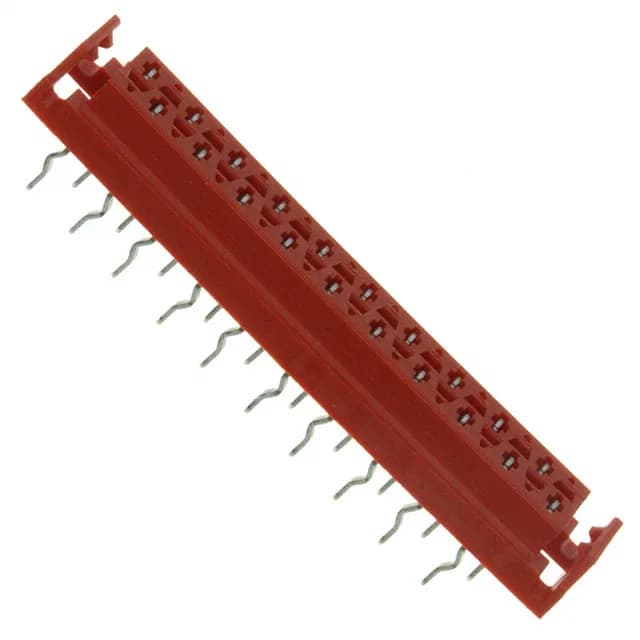

2-338069-0 TE Micro-MaTch 20-Pos 0.1" SMT Receptacle

MPN2-338069-0
Active

TE Connectivity AMP Connectors Micro-MaTch series, 2-338069-0, 20-position dual-row receptacle, 0.100" (2.54mm) pitch, SMT solder termination, tin-plated forked contacts, friction lock, -40°C to 105°C, UL94 V-0 red PA46 housing.

$4.4200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-338069-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-338069-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeFriction Lock
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-338069-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

20-Position 2.54mm SMT Receptacle for Board-to-Board or Cable

The 2-338069-0: This 20-position dual-row receptacle from the Micro-MaTch series mates with standard 0.100" pitch pin headers, making it a direct fit for board-to-board or cable-to-board interconnects in automotive and general-purpose assemblies. The forked contact design and friction lock provide a positive retention that resists vibration-induced separation, a common requirement in automotive harness applications.

SMT Termination and Temperature Range

The glass-filled PA46 housing carries a UL94 V-0 flammability rating, meeting the flame-retardant requirement for equipment inside an enclosure.

Frequently asked questions

Is 2-338069-0 compatible with standard 2.54mm pin headers?

Yes. The 0.100" (2.54mm) mating pitch and dual-row layout match standard square-pin headers. The friction lock engages with a corresponding latch on the header housing.
