TE Connectivity AMP Connectors 2-338070-0 — Female Socket Headers

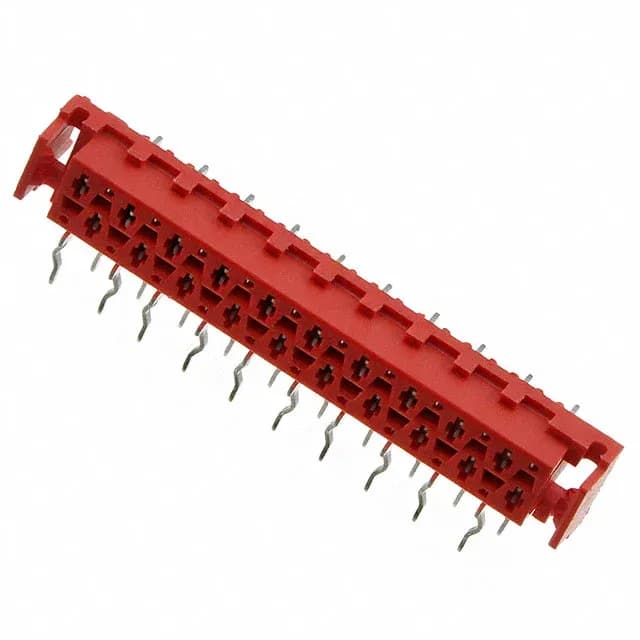

2-338070-0 TE Connectivity Micro-MaTch 20-Pin Receptacle

MPN2-338070-0
Active

TE Connectivity AMP Connectors Micro-MaTch series, 2-338070-0, receptacle, 20 positions, 0.100" (2.54mm) pitch, dual row, right-angle through-hole, kinked pin solder termination, tin contacts, UL94 V-0, -40°C to 105°C, red insulation.

$3.4600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-338070-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typeFriction Lock
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.228\" (5.80mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-338070-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

20-Pin Right-Angle Receptacle for Board-to-Board or Cable

Rated for 100 VDC and a -40°C to 105°C operating range, with a UL94 V-0 glass-filled PBT housing, this receptacle suits automotive and general-purpose applications where vibration resistance and flame rating are required.

Pitch, Row Count, and Mating Half

The 0.100" (2.54mm) pitch and 0.100" row spacing are standard for Micro-MaTch headers — the mating plug is a 20-position, dual-row pin header with the same pitch and a friction lock. Tin-on-tin contact finish (mating and post) keeps cost low for moderate mating-cycle applications; the forked contact type provides reliable wiping action.

Available in Tape & Reel (TR) and Cut Tape (CT) packaging for automated assembly.

Frequently asked questions

What is the mating plug for 2-338070-0?

The mating half is a 20-position, dual-row pin header with 0.100" (2.54mm) pitch and a friction lock, from the Micro-MaTch series. Confirm the header's contact finish and orientation for your assembly.
