TE Connectivity AMP Connectors 2-34824-3
MPN2-34824-3
Active

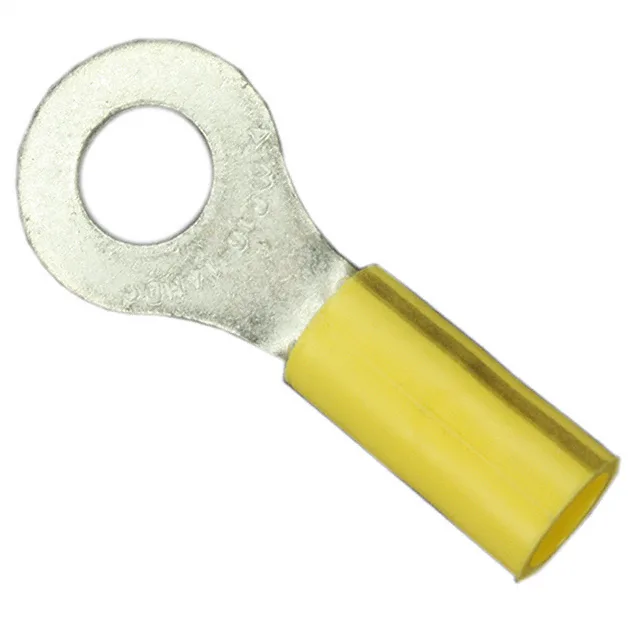

CONN RING CIRC 14-16AWG #1/4
$1.62Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.296\" (32.92mm) |
| Insulation diameter | 0.105\" ~ 0.200\" (2.67mm ~ 5.08mm) |
