TE 2-353079-3 Dynamic D-5200 Header, 10.16mm, 30A, 630V

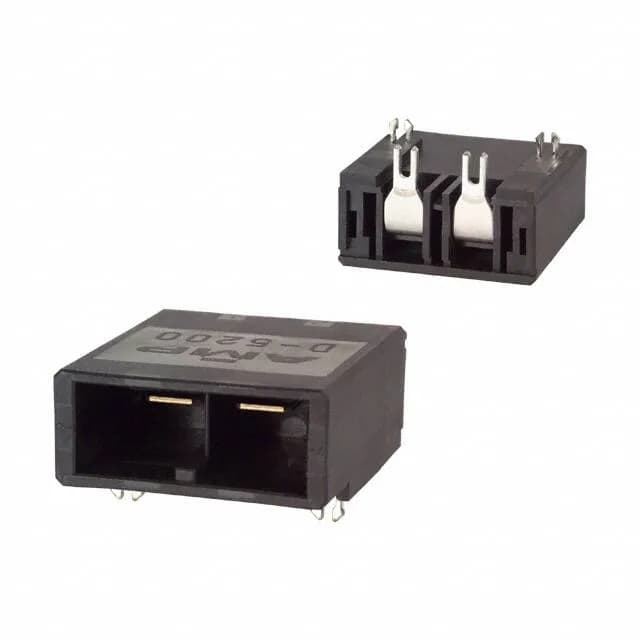

TE Connectivity 2-353079-3, Dynamic D-5200 series, 2-position 1-row shrouded header, 0.400 inch (10.16mm) pitch, right-angle through-hole, board lock, detent lock, gold mating / tin post, 30 A per circuit at 630 V, thermoplastic glass-filled insulator, UL94 V-0, -55 to 105 °C.
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-5200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 630V |
| Current rating | 30A |
| IP rating | IP20 |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.547\" (13.90mm) |
All specifications
| Parameter | Value |
|---|---|
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.400\" (10.16mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
What series does the 2-353079-3 belong to?
It is a member of the TE Connectivity Dynamic D-5200 series, a line of shrouded power headers with board-lock and detent-lock retention features designed for industrial wire-to-board applications.
What is the contact layout and pitch of the 2-353079-3?
The header has 2 positions in a single row at 0.400 inch (10.16 mm) pitch — a 2-circuit power-class layout with rectangular tab contacts.
What compliance documentation applies to the 2-353079-3?
The insulator is rated UL94 V-0 and the operating temperature range is -55 to 105 °C. For full RoHS/REACH or UL recognition documentation, request the official compliance package from TE Connectivity — it is not published in the listing ledger.
What is the current and voltage rating of the 2-353079-3?
The header is rated 30 A per circuit at 630 V, with gold-plated mating contacts at 30.0 µin (0.76 µm) over copper alloy and tin-plated solder tails.
