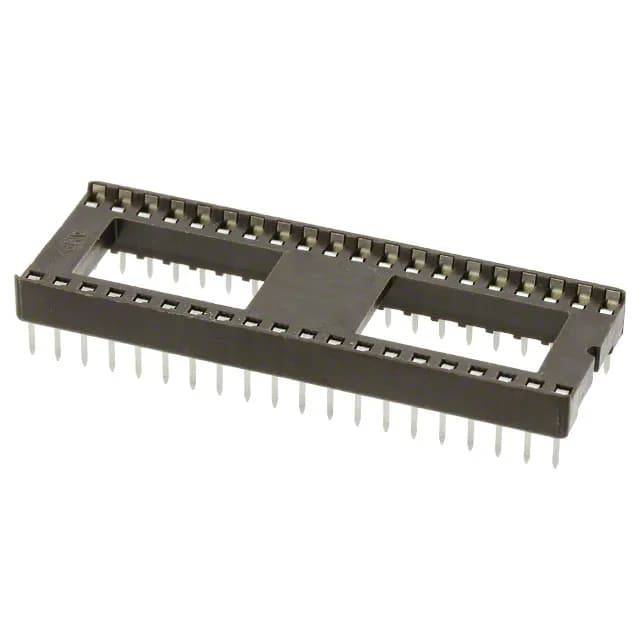

TE Connectivity AMP Connectors Diplomate DL series, 2-382468-4 — a 40-position (2 x 20) DIP socket, 0.100" (2.54 mm) pitch, 0.6" (15.24 mm) row spacing, through-hole solder termination, open-frame thermoplastic housing, gold-plated mating contacts.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.128\" (3.24mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
| Number of positions or pins | 40 (2 x 20) |
The 2-382468-4: The open-frame thermoplastic housing allows airflow around each pin, which helps with thermal management in densely populated boards. Contact resistance is rated at 30mOhm, typical for gold-plated contacts at this pitch.
Available through independent distribution channels.
The open frame gives visual access to each solder joint for inspection. The 0.6" row spacing matches the common 40-pin DIP IC footprint.
TE Connectivity has not published a direct successor for this Diplomate DL DIP socket. The base product number is 382468. For a pin-compatible alternative, look for a 40-position, 0.100" pitch, 0.6" row spacing DIP socket from another manufacturer — confirm the footprint and gold plating grade before substituting.
