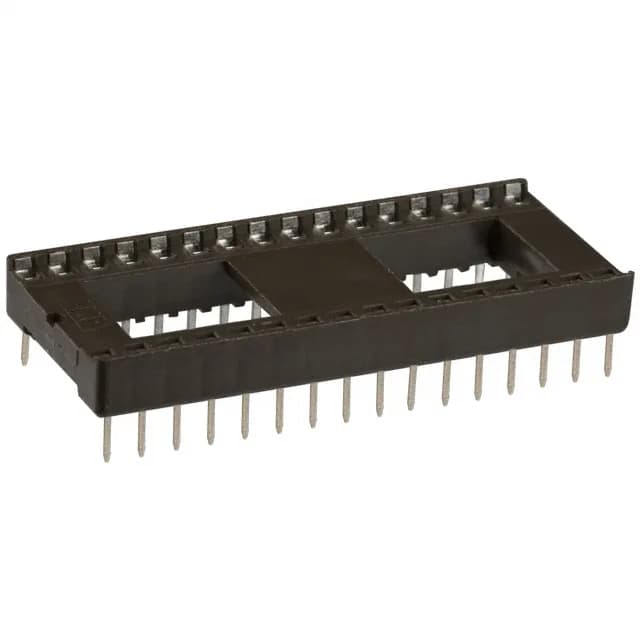

TE Connectivity Diplomate DL DIP header, order code 2-382470-3, 32 positions, dual row, 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin |
| Termination post length | 0.128\" (3.24mm) |
| Number of positions or pins | 32 (2 x 16) |
The 2-382470-3 is the 32-position member of TE's Diplomate DL DIP header line, arranged 2 x 16 on a 0.6" (15.24mm) dual-row grid.
The 2-382470-3 is listed as Obsolete with no official successor from TE Connectivity. The 0.6" row spacing and 32-position grid are specific to this Diplomate DL variant; a pin-compatible drop-in replacement is not recorded.
No pin-compatible alternative is recorded from TE Connectivity. The 0.6" (15.24mm) row spacing and 32-position grid are unique to this Diplomate DL variant.
RoHS and REACH compliance status is not confirmed in available records.
