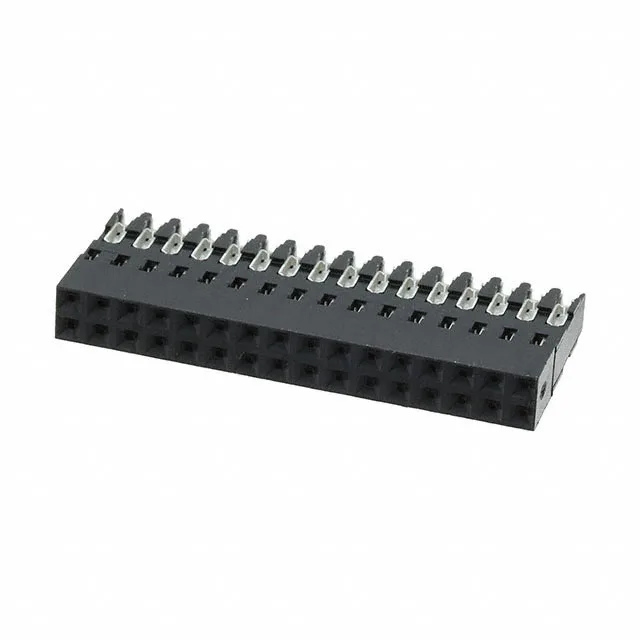

2-5102935-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU Level V 2-5102935-8, 32-pos IDC Receptacle

MPN2-5102935-8
Active

TE Connectivity AMPMODU Level V receptacle, 32 positions, 2 rows, 0.125" (3.18mm) pitch, IDC termination, 22-26 AWG, gold 50.0µin (1.27µm) contacts, free-hanging.

$12.8964Ref. price · indicative, final on quote
2-5102935-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-5102935-8 Technical Specifications
ParameterValue
SeriesAMPMODU Level V
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22-26 AWG
Cable terminationIDC
Pitch0.125\" (3.18mm)
PackageBulk
Row spacing0.125\" (3.18mm)
Contact finishGold
Rows2
Positions32
Contact finish thickness50.0µin (1.27µm)

Product details

32-Position IDC Receptacle on 0.125" Grid

The 0.125" (3.18mm) pitch and row spacing place it on a standard grid that matches common ribbon cable and header layouts.

It accepts 22-26 AWG discrete wire, which covers the common signal and low-power wiring used in ribbon-cable harnesses and point-to-point control wiring. The free-hanging mount means it sits at the end of a cable bundle, not soldered to a board.

No direct equivalent or official replacement is on record; the AMPMODU Level V series includes other position counts and row configurations, but a pin-compatible drop-in would need to match the 32-position, dual-row, 0.125" pitch footprint.

Frequently asked questions

What is the pitch of the 2-5102935-8?

The 2-5102935-8 uses a 0.125" (3.18mm) pitch on both the contact spacing and the row spacing, matching standard 0.125" grid ribbon cable and header patterns.

What wire gauge does the 2-5102935-8 accept?

The IDC termination accepts 22-26 AWG discrete wire. No stripping or crimping is needed — the insulation is displaced by the contact slot during assembly.
