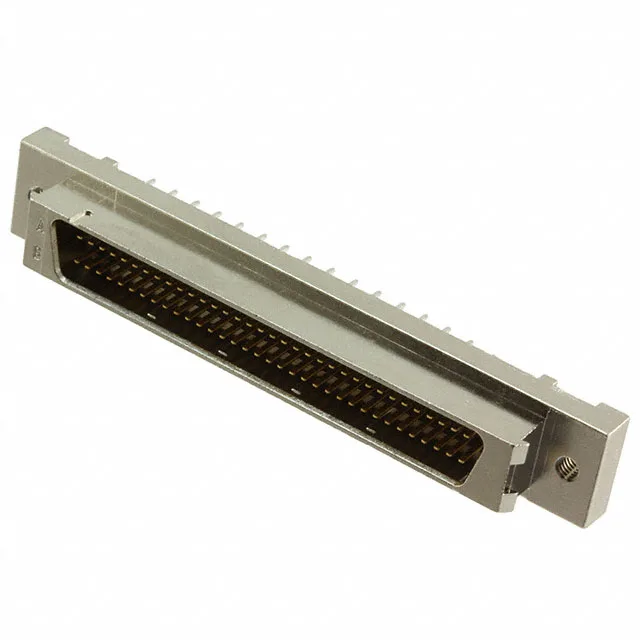

2-5174339-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE.050 II 2-5174339-5, 68-Pos D-Sub Cap, Shielded

MPN2-5174339-5
Active

TE Connectivity AMPLIMITE.050 II D-sub cap, male pins, 68 positions, 2 rows, 0.050 inch pitch x 0.100 inch row spacing, through-hole solder termination, gold-plated phosphor bronze contacts, shielded zinc shell with nickel plating, rated 1 A per contact at 100 V.

$27.5400Ref. price · indicative, final on quote
2-5174339-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2-5174339-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE.050 II
GenderSignal
Mounting typeThrough Hole
Connector typeCap, Male Pins
Voltage rating100V
Current rating1A
Shell size, connector layout0.050 Pitch x 0.100 Row to Row
Operating temperature-55°C ~ 85°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishZinc, Nickel Plated
PackageBulk
FeaturesShielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (M2.5)
Rows2
Positions68
Contact finish thickness30.0µin (0.76µm)

Product details

High-Density D-Sub for Signal-Dense Boards

The TE Connectivity AMPLIMITE.050 II 2-5174339-5 is a 68-position D-sub cap (male pin side) designed for high-density signal interconnects where board space is tight. It uses a 0.050 inch pitch with 0.100 inch row-to-row spacing, packing 68 circuits into a shell size notably smaller than a standard-density 50-position D-sub. The through-hole solder termination and dual-row layout fit a compact board footprint, and the shielded zinc shell with nickel plating keeps EMI from leaking into or out of the cable assembly.

Signal Duty, Not Power — What the 1 A Rating Means

Shielded Shell and Temperature Range

The zinc shell with nickel plating provides RFI/EMI shielding, and the housing/shell flange includes M2.5 threaded inserts for secure panel mounting.

Frequently asked questions

Is 2-5174339-5 shielded?

Yes, it features a shielded zinc shell with nickel plating for EMI containment.
