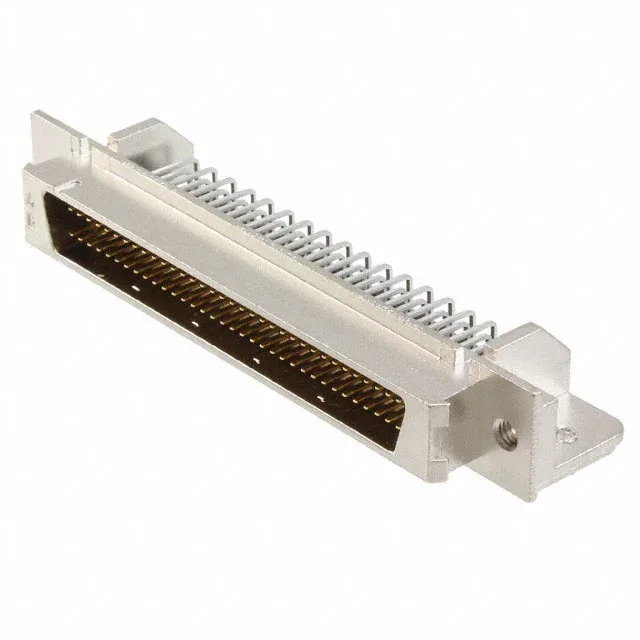

CONN D-TYPE CAP 68POS R/A SLDR
$35.85Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPLIMITE.050 II |
| Gender | Signal |
| Mounting type | Through Hole, Right Angle |
| Connector type | Cap, Male Pins |
| Voltage rating | 100V |
| Current rating | 1A |
| Shell size, connector layout | 0.050 Pitch x 0.100 Row to Row |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Zinc, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (M2.5); Latchblocks |
| Rows | 2 |
| Backset spacing | 0.149\" (3.80mm) |
| Positions | 68 |
| Contact finish thickness | 30.0µin (0.76µm) |
Sourcing this connector
TE Connectivity AMP Connectors 2-5174341-5 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
