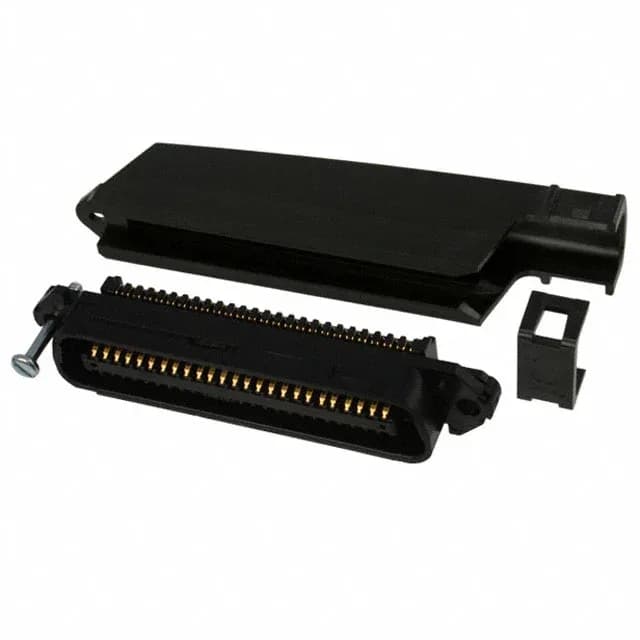

CHAMP .085 50-Position IDC Plug
The TE Connectivity 2-5229912-1 is a 50-position plug from the CHAMP.085 series, built for mass-termination of ribbon cable in high-density I/O applications. It uses an IDC termination — no wire stripping, no crimp tool — just a press that drives the contacts through the cable insulation. The connector is free-hanging (in-line), so it lands on the end of a cable bundle, not a board edge.
The 4-40 threaded inserts in the housing shell lock the pair together — give it a turn with a screwdriver or a thumb-screw tool, and the connection won't rattle loose on a machine or a rack. Termination is IDC: you lay the ribbon cable across the contact slot, press the cover down with a hand press or a bench fixture, and the insulation-displacing slots bite through the jacket. No solder, no crimp, no individual wire prep.
50 Circuits in Two Rows
The 50 positions are arranged in two rows, center-strip contact style — the contacts sit in a single row down the middle of the connector body, staggered to the two rows of the cable. That layout keeps the plug narrow for its circuit count. If you're comparing against the 2-5229912-2, the difference is in the contact finish or plating variant — confirm the BOM line calls for the 30.0µin gold of this version before swapping.
