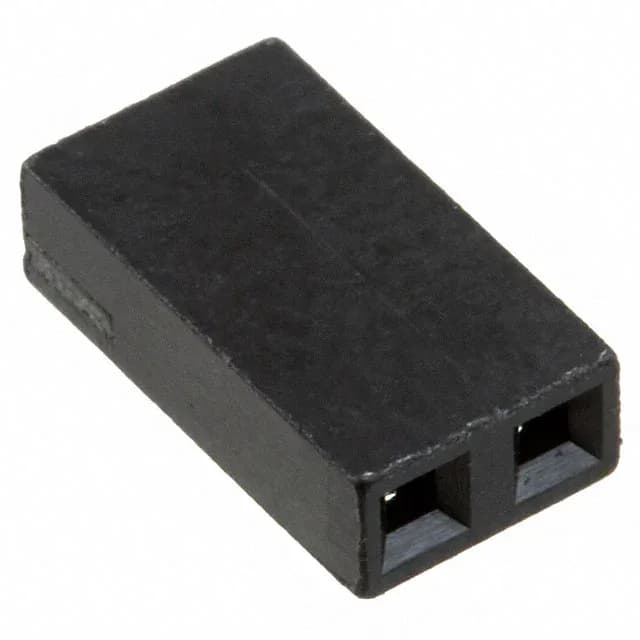

TE Connectivity AMP, 530153 series, 2-position female socket, 0.100" (2.54mm) pitch, Open Top, 3A, gold 100µin contacts, UL94 V-0, black housing, bulk pack.
| Parameter | Value |
|---|---|
| Type | Open Top |
| Current rating | 3A |
| Color | Black |
| Height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Contact finish thickness | 100.0µin (2.54µm) |
| Number of positions or pins | 2 (1 x 2) |
The 0.100" pitch sets the PCB footprint — this socket mates with 0.025" square post headers, commonly from the same 530153 series or generic BergStik-compatible headers. The 0.360" (9.14mm) height gives clearance for the mated assembly above the board. For a 2-wire interconnect, this is a direct BOM match. Confirm the header pin length and orientation (straight or right-angle) to ensure the mated stack height fits the enclosure.
This socket mates with a 2-position 0.100" pitch header with 0.025" square posts, such as the TE Connectivity 530153 series header (e.g., 1-530153-2 or similar). Confirm the header pin length and orientation for your board stack.
No — the listing shows RoHS non-compliant. Verify your application's restrictions before ordering.
