TE Connectivity BNC jack, female socket, 50 Ohm, 2.5 GHz, 500 V, panel mount bulkhead, bayonet lock, crimp shield termination, includes 7-piece kit.
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 2.5 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-161, 179, 179A, 179B, 187, 187A, Belden 9221 |
| Operating temperature | -65°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |

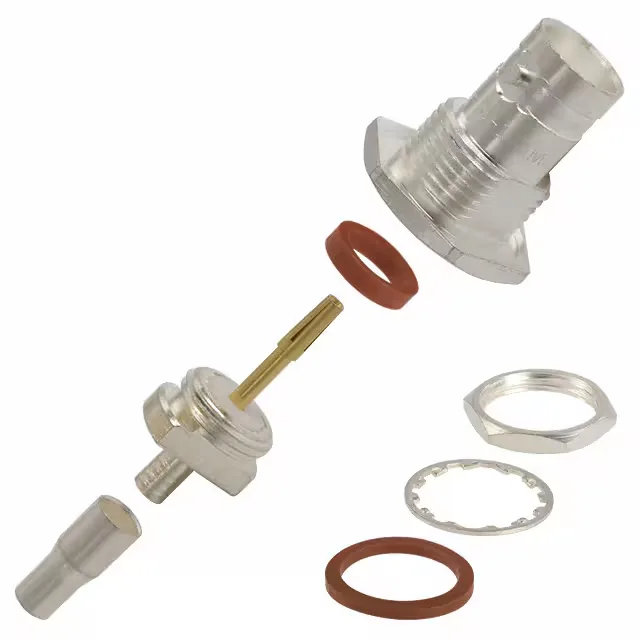

| Includes | 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 2 Gaskets, 1 Lockwasher, 1 Nut |
| Impedance | 50Ohm |
| Body finish | Silver |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Push On |
| Center contact plating | Gold |
The 2-5329458-1: It handles signals up to 2.5 GHz and is rated for 500 V, making it a standard choice for RF test equipment, instrumentation, and low-power transmission lines where a quick-connect bayonet interface is preferred over threaded types.
The 50 Ohm impedance and 2.5 GHz frequency ceiling define the signal path. The cable group list — RG-161, 179, 179A, 179B, 187, 187A, Belden 9221 — tells you which coax diameters and dielectrics the ferrule and contact are sized for.
Yes, the TE Connectivity 2-5329458-1 is officially obsolete. There is no published direct replacement or successor part number.
The 2-5329458-1 is compatible with RG-161, 179, 179A, 179B, 187, 187A, and Belden 9221 coax cables. The ferrule and contact are sized for these specific cable diameters and dielectrics.
