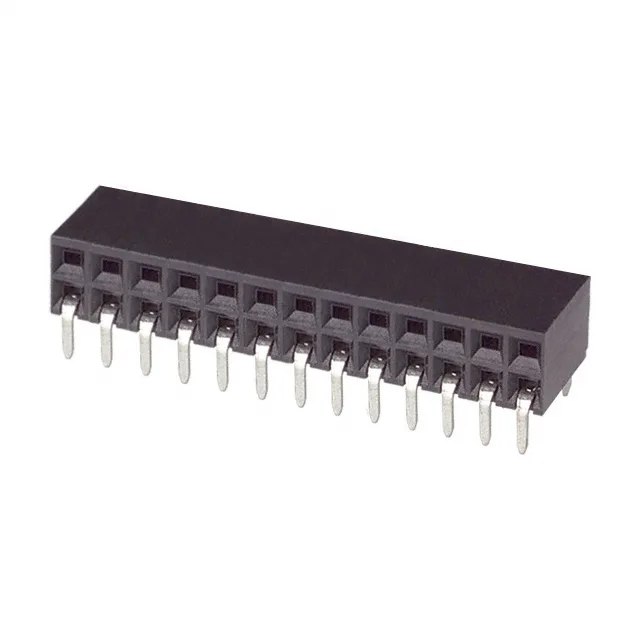

TE Connectivity AMPMODU Mod II receptacle, 26 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole right-angle, gold mating finish, 2 A per contact, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The solder tails are tin-lead finished, which wets well in wave-solder processes.
The 0.115" (2.92 mm) post length gives enough standoff for solder fillet inspection on a standard 1.6 mm board.
Available through independent distribution channels.
This receptacle mates with a 0.100" pitch, dual-row pin header — typically an AMPMODU Mod II or compatible series header with 26 positions and square 0.025" posts. Confirm the header's pin length and plating match your application's mating cycle and current requirements.
No — the solder tails have a tin-lead finish, making this part RoHS non-compliant. Verify your assembly's RoHS exemption or consider a lead-free alternative in the AMPMODU Mod II series.
