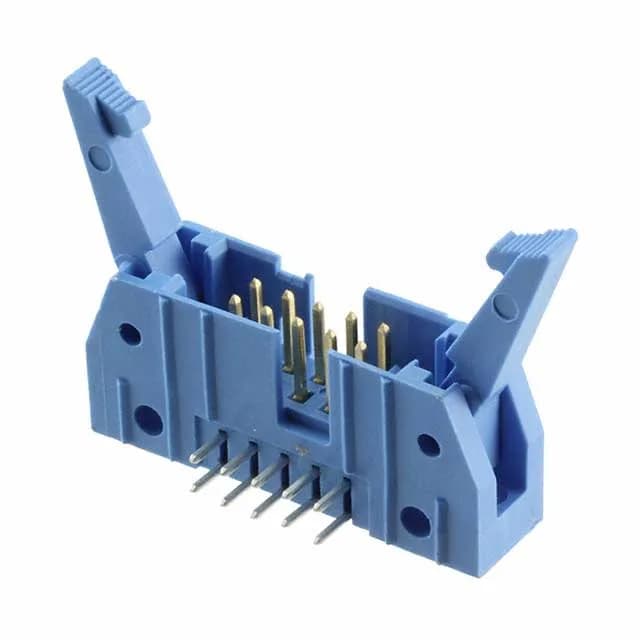

TE Connectivity AMP-Latch, Header, 10 Positions, 2.54mm Pitch, Through Hole, Right Angle, Solder Termination, Male Pin, Shrouded - 4 Wall, Latch Lock/Eject Hooks, 1A per Contact, 250VAC, -65°C ~ 105°C, UL94 V-0, Blue Insulation, Tray
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Latch lock/eject hooks provide a positive mechanical lock with the mating half, resisting vibration-induced disconnection. The long eject hooks also simplify unmating in dense wiring harnesses.
Current rating is 1 A per contact — a typical signal-level limit; the actual safe current depends on ambient temperature and the number of simultaneously loaded circuits.
The latch lock/eject hooks engage the receptacle's locking slots for a secure connection.
Yes, the header is designed for the AMP-Latch system. The 0.100-inch pitch and 10 positions match standard 10-conductor ribbon cable assemblies terminated with AMP-Latch IDC receptacles.
