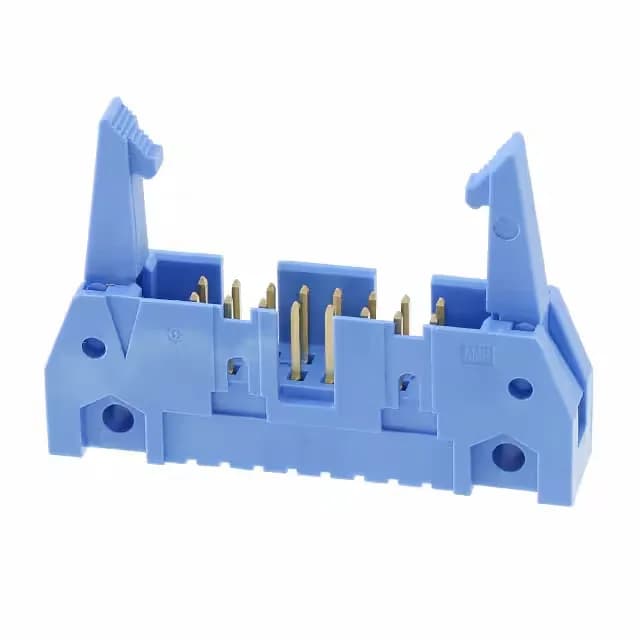

TE Connectivity AMP-Latch header, 2-5499141-3, 16 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, gold or gold-palladium mating finish, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Latch lock/eject hooks provide audible positive retention against cable strain — no secondary lock needed for most industrial panel wiring.
Mates with AMP-Latch receptacles that accept 0.100" pitch IDC ribbon cable.
Yes, the header includes a keying slot and mounting flange to prevent mis-mating and secure the connector to the board.
