TE Connectivity AMP Connectors 2-5499141-6 — Pin Headers

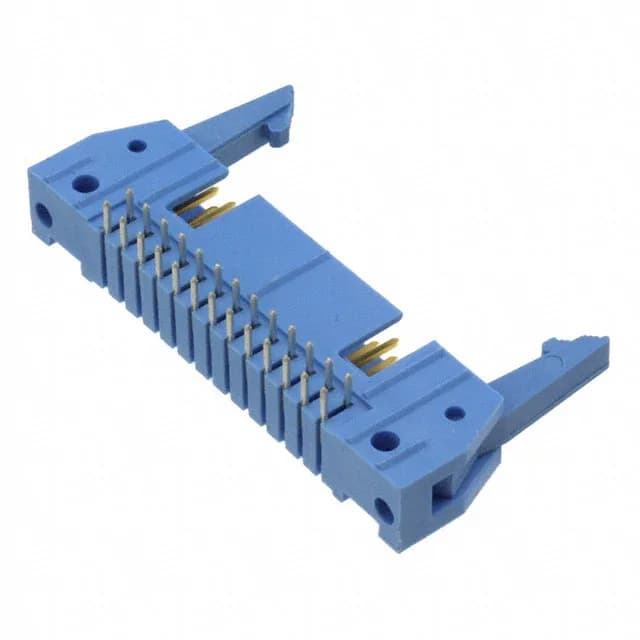

2-5499141-6 TE Connectivity AMP-Latch Header 26 Pos 2.54 mm

MPN2-5499141-6
Active

TE Connectivity AMP-Latch, Header, 26 Positions, 2.54 mm Pitch, Dual Row, Through Hole Right Angle, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1 A per Contact, 250 VAC, Blue Insulation, Tray

$8.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-5499141-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-5499141-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlue
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

2-5499141-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-position right-angle header for AMP-Latch IDC cable assemblies

The 2-5499141-6: This is a 26-position, dual-row, 2.54 mm pitch header from the AMP-Latch series, designed to mate with standard AMP-Latch IDC ribbon cable sockets. The 4-wall shroud and long latch lock/eject hooks guide the mating plug and hold it securely under vibration. The keying slot and mounting flange add alignment and board retention during assembly.

Contact rating and plating for repeated mating

Each contact is rated 1 A at 250 VAC. The brass square pin measures 0.240" mating length and 0.110" post length.

No single-vendor lock; the AMP-Latch family is widely second-sourced across the IDC connector market.

Frequently asked questions

What is the mating connector for 2-5499141-6?

This header mates with AMP-Latch IDC ribbon cable sockets that have a 2.54 mm pitch, dual-row layout, and 26 positions. The long eject hooks and 4-wall shroud are designed for the standard AMP-Latch plug housing.

Is 2-5499141-6 RoHS compliant?

Yes, it is ROHS3 compliant.

How can I order 2-5499141-6 or check stock?

Sourced per RFQ — availability and pricing confirmed at quote time.
