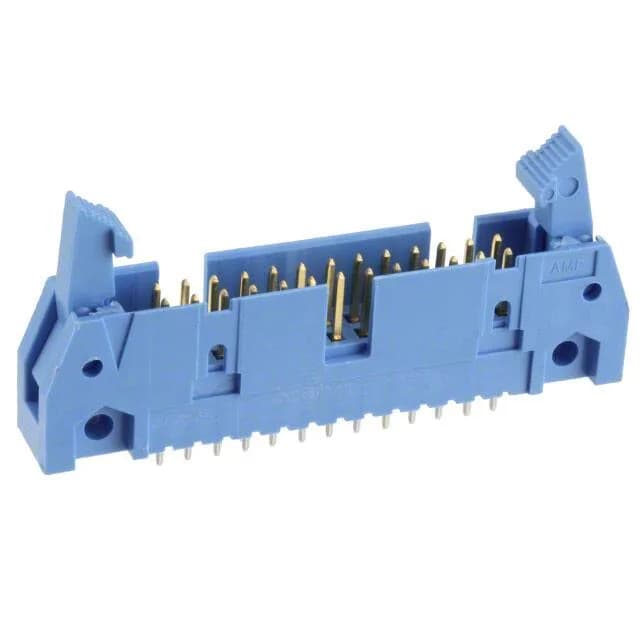

TE Connectivity AMP-Latch header, order code 2-5499160-6, 26 positions, dual row, 0.100" (2.54 mm) pitch, 1 A, shrouded 4-wall, through-hole solder termination, latch lock/eject hooks, tray.
TE AMP-Latch 2-5499160-6 Header, 26-Pos 0.100" Pitch
MPN2-5499160-6
Active
TE Connectivity AMP-Latch header, order code 2-5499160-6, 26 positions, dual row, 0.100" (2.54 mm) pitch, 1 A, shrouded 4-wall, through-hole solder termination, latch lock/eject hooks, tray.
$5.2828Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Insulation color | Blue |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy the 2-5499160-6 and get pricing?
The 2-5499160-6 is available to order. Submit an RFQ for current pricing and lead time; stock is quoted against the BOM quantity.
