TE Connectivity AMP Connectors 2-5499206-6 — Pin Headers

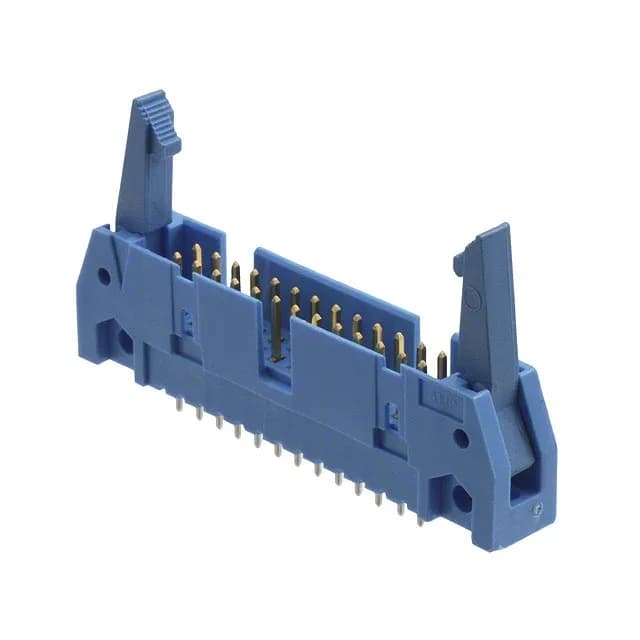

TE 2-5499206-6 AMP-Latch Header 26 Pos 2.54mm Pitch

MPN2-5499206-6
Active

TE Connectivity AMP-Latch, Board to Cable/Wire Header, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Gold or Gold-Palladium Mating Finish, 1A, 250VAC, Blue Insulation, Tray

$9.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-5499206-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlue
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

2-5499206-6 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Position AMP-Latch Header for Ribbon-Cable Interconnects

The 2-5499206-6: The shrouded 4-wall housing with a keying slot and mounting flange ensures correct orientation and mechanical stability on the PCB. The latch lock/eject hooks provide positive retention during vibration and allow tool-less unmating, which is useful in harness assembly and field-service scenarios where the connector is cycled regularly. The mating contact finish is gold or gold-palladium at 30.0 µinch (0.76 µm), supporting repeated mating cycles in environments where corrosion resistance matters, such as industrial control cabinets or test equipment.

Current and Voltage Limits for Signal Duty

Rated at 1 A per contact and 250 VAC, this header is suited for signal-level interconnects rather than power delivery.

Frequently asked questions

What is the mating connector for the 2-5499206-6?

This header mates with AMP-Latch IDC receptacles that accept 0.100-inch (2.54 mm) pitch ribbon cable. The latch lock/eject hooks on the header engage with the corresponding slots on the receptacle housing.
