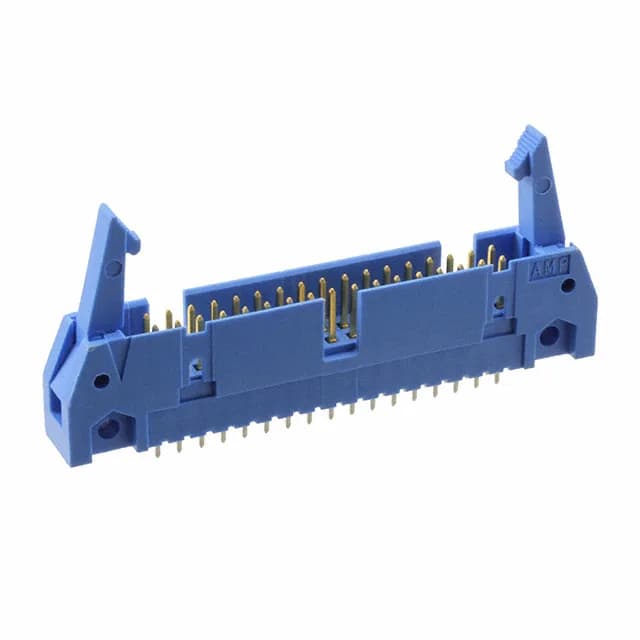

34-Position 0.100" Pitch Vertical Header — AMP-Latch Series
The tin-plated solder tails (100 µinch) handle the board-side connection without premium plating cost.
Latch Lock and Keying — Vibration-Resistant Mating
The long eject hooks provide a positive latch lock that resists vibration-induced unmating — the hooks engage the mating receptacle's slots and require deliberate release. The keying slot on the header prevents insertion of an unkeyed receptacle, reducing mis-mate risk in multi-connector panels. Mounting flanges on each end allow screw-down attachment to the PCB for additional mechanical retention — useful in high-vibration environments or when the cable assembly is frequently disconnected.
Peer Comparison — 12-Position Right-Angle Alternative
The 34-position vertical version here offers higher circuit density, gold mating surface for longer cycle life, and the long eject hooks for tool-less unmating — at the cost of a larger board footprint.
