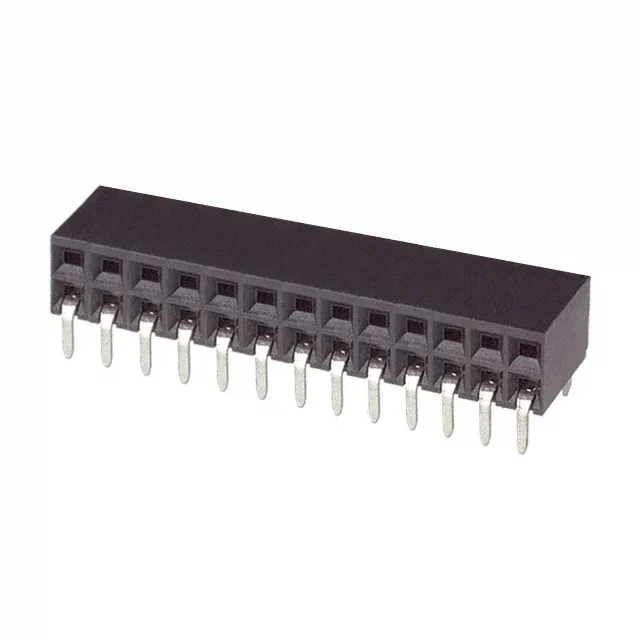

TE Connectivity AMPMODU Mod II, Receptacle, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Finish, 2A, -55°C~125°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Bag |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2-5535512-0: RoHS compliant per the listing, and the tin post finish (150 µinch) is compatible with lead-free soldering profiles.
This receptacle mates with a 0.100" pitch, dual-row pin header — typically an AMPMODU Mod II or BergStik II header with square 0.025" pins.
It is orderable through our distribution desk. No stock-holding claim — sourced per request.
Any 0.100" pitch, dual-row square-pin header (0.025" square pins) from the AMPMODU Mod II or BergStik II series mates with this receptacle. The push-pull retention means no locking latch — the fit is interference-based.
Yes — RoHS compliant per the listing. The tin post finish is lead-free process compatible.
