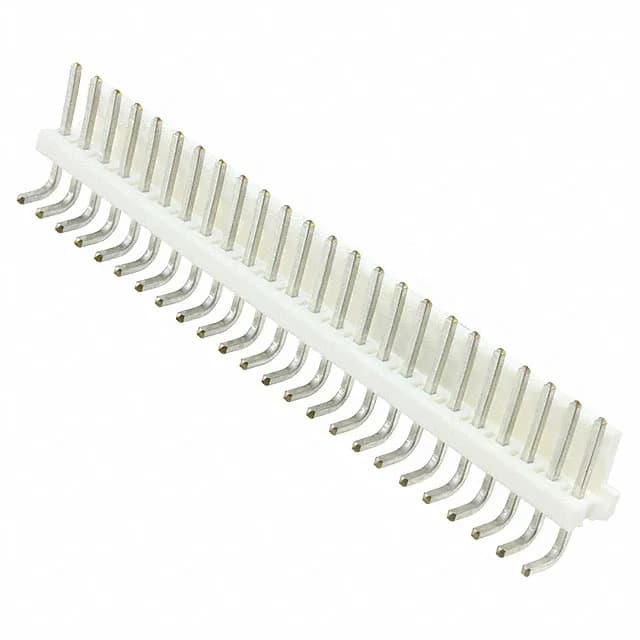

TE Connectivity AMP Connectors MTA-156 series header, 2-640389-4, 24 positions, 0.156" (3.96mm) pitch, through-hole right-angle, shrouded 1 wall, friction lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 24 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
Rated 600VAC — that's a high-voltage ceiling for a 3.96mm pitch header, so it fits power distribution inside industrial cabinets where 480VAC lines are common.
RoHS3 compliant, bulk packaging. The base product number is 640389; the full order code 2-640389-4 is the tin-plated, right-angle variant.
The mating pitch is 0.156" (3.96mm), single row, 24 positions loaded all.
Yes, it is ROHS3 Compliant per the manufacturer listing.
