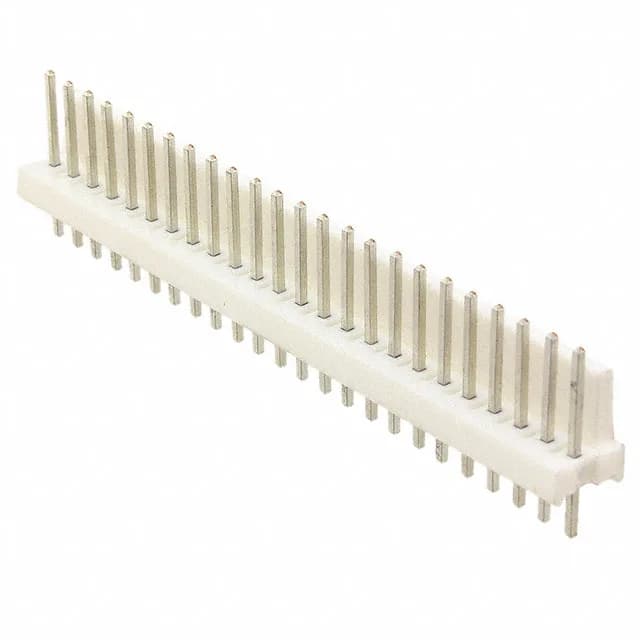

TE Connectivity AMP Connectors MTA-100, Header, Board to Cable/Wire, 24 Positions, 0.100" (2.54mm) Pitch, Through Hole, Tin Mating Finish, UL94 V-0
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 2-640454-4: This is a 24-position, single-row, shrouded-1 wall header from TE's MTA-100 series, designed for board-to-cable/wire applications. Rated at 250VAC with a UL94 V-0 thermoplastic housing, it handles general-purpose signal and low-power distribution inside equipment enclosures.
At 24 positions on a 0.100" pitch, the single-row layout keeps the footprint narrow.
The pitch is 0.100" (2.54mm), standard for the MTA-100 series.
