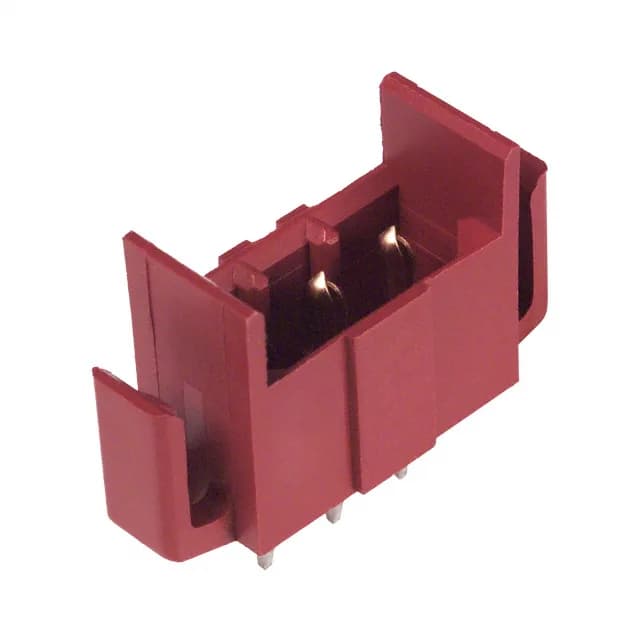

2-640498-2 - TE Connectivity AMP Connectors
MPN2-640498-2
Active
$3.6981Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MR (Miniature Rectangular) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250VAC |
| Current rating | 6A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black, Red |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.220\" (5.59mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
