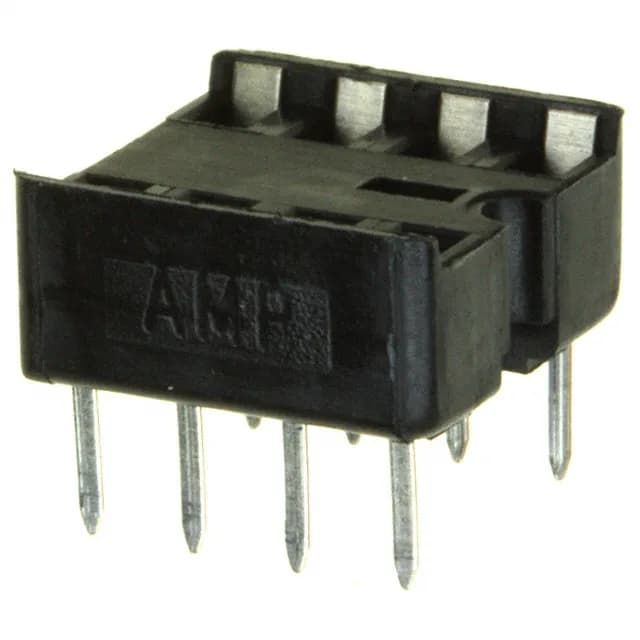

TE Connectivity AMP Connectors Diplomate DL DIP header, order code 2-641260-1, 8 positions, 2 x 4 grid, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, tube package.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C~105°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.120\" (3.05mm) |
| Number of positions or pins | 8 (2 x 4) |
The 2-641260-1 is the 8-circuit member of TE Connectivity's Diplomate DL DIP header line, arranged in a 2 x 4 grid with 0.300" (7.62mm) row spacing.
The 2-641260-1 is listed as Obsolete by TE Connectivity AMP Connectors. A board spin is required for any functional replacement.
The 2-641260-1 is an 8-position DIP header with a 2 x 4 grid and 0.300" (7.62mm) row spacing.
