TE Connectivity Diplomate DL DIP socket, order code 2-641261-1, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated mating and post contacts, through-hole, solder termination, closed frame.

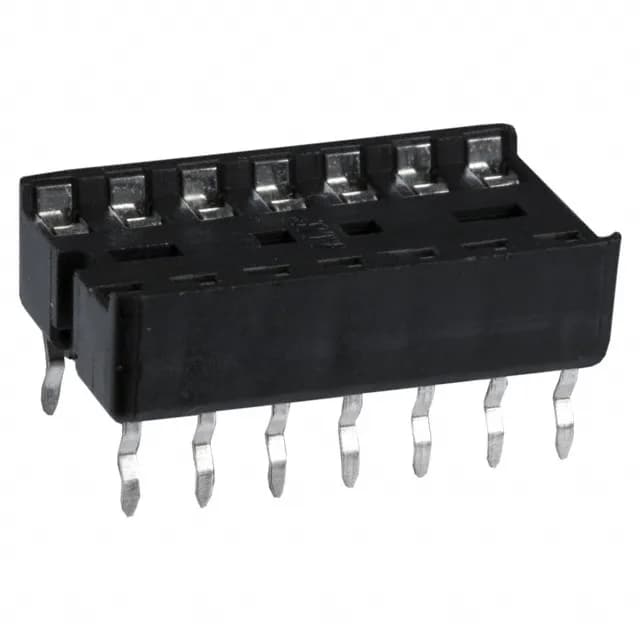

TE 2-641261-1 Diplomate DL DIP Socket 14 Pos
MPN2-641261-1
Obsolete
TE Connectivity Diplomate DL DIP socket, order code 2-641261-1, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated mating and post contacts, through-hole, solder termination, closed frame.
$6.3500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.120\" (3.05mm) |
| Number of positions or pins | 14 (2 x 7) |
Product details
Frequently asked questions
Is 2-641261-1 available via RFQ confirmation and what is the lead time for an order?
The 2-641261-1 is an Obsolete part.
