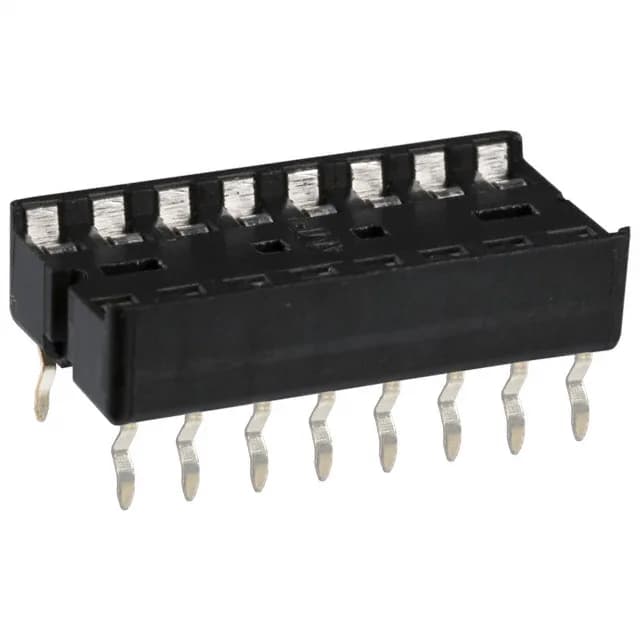

TE Connectivity AMP Connectors Diplomate DL DIP header, order code 2-641262-1, 16 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
2-641262-1 TE Diplomate DL 16-Pin DIP Header, Obsolete
MPN2-641262-1
Obsolete
TE Connectivity AMP Connectors Diplomate DL DIP header, order code 2-641262-1, 16 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
$14.1138Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.120\" (3.05mm) |
| Number of positions or pins | 16 (2 x 8) |
Product details
Frequently asked questions
Who supplies 2-641262-1 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors is the manufacturer.
What is the closest pin-compatible alternative to 2-641262-1 in this Pin Headers, Sockets & Housings family?
The Diplomate DL series includes other position counts, but no direct replacement for the 16-position DIP footprint has been designated.
What compliance documentation does TE Connectivity AMP Connectors provide for 2-641262-1 (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance documentation is available from the manufacturer; no specific certification status is recorded in the catalog entry.
