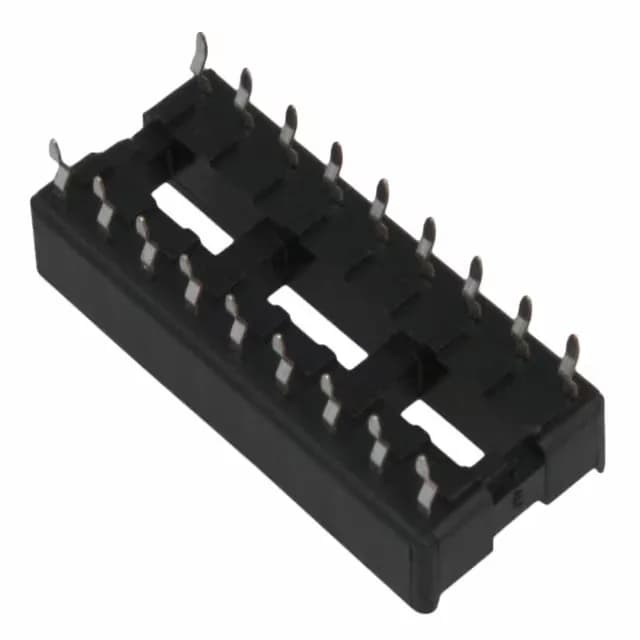

TE Connectivity AMP Connectors Diplomate DL DIP header, order code 2-641611-1, 18 positions (2 x 9), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, tin-plated mating contacts, through-hole solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C~105°C |
| Housing material | Thermoplastic |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.120\" (3.05mm) |
| Number of positions or pins | 18 (2 x 9) |
The 2-641611-1 is the 18-circuit member of TE's Diplomate DL DIP header line, arranged as 2 rows of 9 on 0.3" (7.62 mm) row spacing.
No official pin-compatible successor is listed from the original manufacturer.
