TE Connectivity AMP Connectors 2-641615-1 — Pin Headers, Sockets & Housings

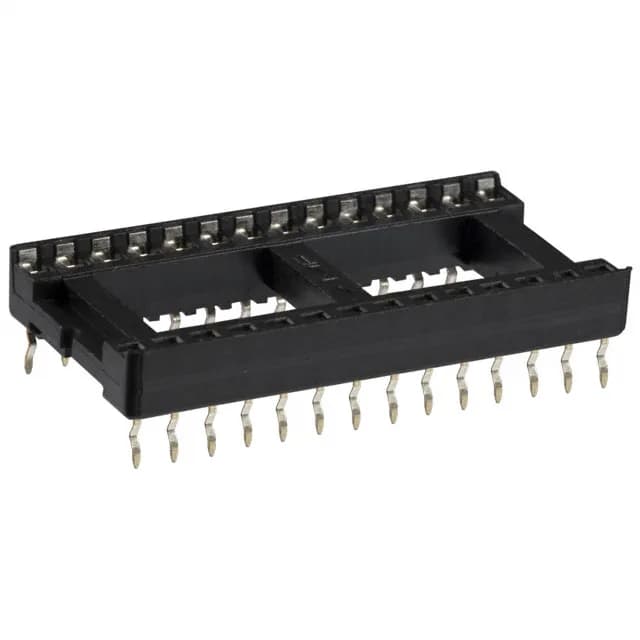

2-641615-1 TE Connectivity Diplomate DL Header, 28 Pos

MPN2-641615-1
Obsolete

TE Connectivity Diplomate DL DIP header, order code 2-641615-1, 28 positions, dual row, 0.100" (2.54 mm) pitch, 0.6" (15.24 mm) row spacing, tin-plated mating contacts, through-hole right-angle, solder termination.

$0.6800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-641615-1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2-641615-1 specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole, Right Angle, Vertical
Operating temperature-55°C ~ 105°C
Housing materialThermoplastic, Glass Filled
Contact material - postBeryllium Copper
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesClosed Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance30mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.120\" (3.05mm)
Number of positions or pins28 (2 x 14)

Product details

DIP header with 0.6" row spacing

The 2-641615-1: Mating contacts are tin-plated beryllium copper; the post finish is tin. The through-hole right-angle orientation suits board-edge mounting in a DIP socket footprint.

The 2-641615-1 is listed as Obsolete by TE Connectivity AMP Connectors.

Board fit and mounting

The 0.6" (15.24 mm) row spacing matches standard DIP socket layouts. The closed-frame housing in UL94 V-0 thermoplastic glass-filled material protects the contacts during handling and insertion.
