TE Connectivity Diplomate DL DIP socket, order code 2-641615-2, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, gold-plated beryllium copper contacts, through-hole solder termination.

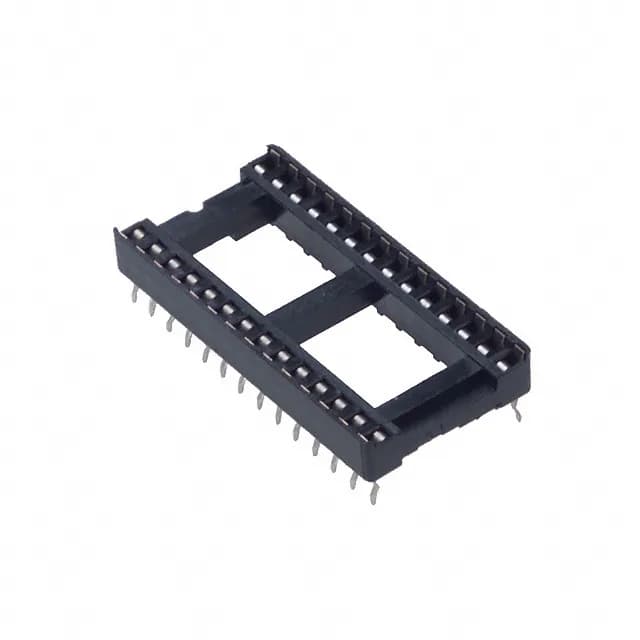

TE Connectivity 2-641615-2 Diplomate DL DIP Socket, 28 Pos
MPN2-641615-2
Active
TE Connectivity Diplomate DL DIP socket, order code 2-641615-2, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, gold-plated beryllium copper contacts, through-hole solder termination.
$1.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.120\" (3.05mm) |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 28 (2 x 14) |
